2CPX035786R9999
Part Number: 2CPX035786R9999
Product Information
Extended Description

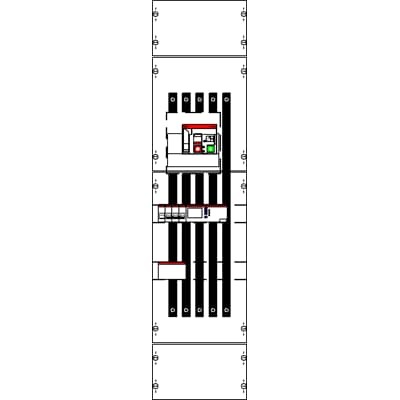

2CPX035786R9999 ABB: EEG-board, mounted in cabinet, applicable standards: VDE AR-N 4105:2018-11, Rated operational voltage 415V AC 50 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 200 A, dimensions in mm (H x W x D): 1050 x 250 x 160, Earthing system TN-S, also suitable for TT-System, 5-pole, covers out of Plastic, Quick sealable connection
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
200 A
Rated Operational Current (Ie)
200 A
Number of Poles
5P
Number of Switches
1
Number of TSG Panels
0
Enclosure Type
EEG-board
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Product Net Weight
16.041 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
16.683 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram WM17NL25
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
