ABB 2CPX037112R9999 Metering exchange board - IP2XC
Part Number: 2CPX037112R9999
Quick Summary
ABB 2CPX037112R9999 Metering board delivers a compact, pre-wired metering panel for inside-plant power measurement. This solution addresses wiring complexity and late-stage integration by providing a ready-to-install unit designed for reliable operation in utility and industrial environments. It carries CE conformity, RoHS and REACH declarations, and IP2XC protection to support safe, regulatory-compliant installations. With a 750 mm square footprint, DIN-rail compatibility, and a pre-wired configuration, it lowers installation risk and total lifecycle costs while supporting scalable metering across grid modernization projects. Engineers gain predictable performance, easier maintenance planning, and faster project turnover when replacing legacy panels with ABB meter panels.
Product Information
Extended Description

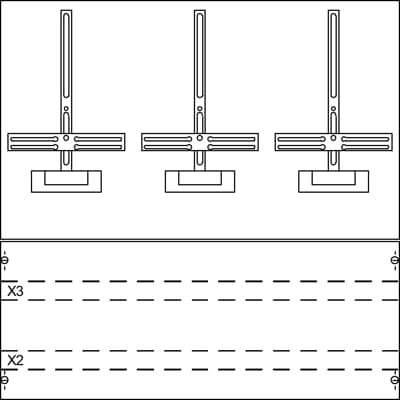

2CPX037112R9999 ABB: Metering exchange board, meter panel, with Metering cross, for the internal use, degree of protection IP2XC, Rated operational voltage 415V AC Hz, rated current 0 A, in RAL 7035, dimensions in mm (H x W x D): 750 x 750 x 175, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, Grid unit 5 GU, Overall height 1, panel width 3, Space units 180, covers out of Plastic, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
1-story
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Rows
0
Number of TSG Panels
1
Design
complete panel measuring panel
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Metering exchange board
Enclosure Type of Height
1
Plug In Meter Terminal
No
Cover Style
Closed
DIN Place Units
180
Meter Boards
1
Module Function
Measuring field
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
36
Product Net Width
750 mm
Product Net Height
750 mm
Product Net Depth / Length
175 mm
Section Width
3
Product Net Weight
12 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
12.48 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature: Pre-wired per DSO requirements, grid unit 5 GU, 1 SG space, 1 transformer meter space, 1 meter cabinet and 1 meter panel. Business Impact: Significantly reduces field wiring time and wiring errors, speeding commissioning and minimizing on-site labor costs. Application: Utilities and industrial facilities implementing internal metering cabinets and grid connections. Feature: IP2XC degree of protection with a closed cover. Business Impact: Protects sensitive metering electronics from dust and incidental contact in indoor environments, reducing maintenance frequency and extending panel life. Application: Meter rooms, control rooms, and indoor switchgear installations. Feature: Generous dimensions and DIN rail compatibility (750 x 750 x 175 mm; 180 DIN place units; 3 section width). Business Impact: Ensures easy integration with standard meters, CTs, and ancillary equipment, enabling quick upgrades and scalable configurations. Application: New builds and retrofit projects across energy management applications. Feature: Color and finish (RAL 7035 light grey) with durable, closed cover. Business Impact: Aesthetic consistency and environmental durability simplify compliance reporting and long-term maintenance scheduling. Application: Indoor facilities requiring uniform control-room aesthetics. Feature: RoHS and REACH compliant materials, WEEE category 4, CE declarations. Business Impact: Regulatory assurance reduces risk of non-compliance penalties and supports sustainable end-of-life handling. Application: Global deployments with strict regulatory requirements. Feature: Lower connection space with DIN rails and pre-wired design. Business Impact: Facilitates faster installation, safer wiring practices, and easier future upgrades without rework. Application: New installations and retrofits in metering cabinets and distribution panels.
Get a Quick Quote for a ABB 2CPX037112R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX037112R9999?
Enquire Now
FAQs
The meter board features a lower connection space designed for DIN rails (Top Hat Rails) and a total of 180 DIN place units. It is pre-wired per DSO requirements, including one meter cabinet and one meter panel. This setup enables straightforward installation and scalable expansion for metering cabinets in control rooms or utility environments.
Rated Operational Voltage is a maximum 415 V, with a rated current of 0 A as documented. It includes a measuring field with 1 SG space and 1 transformer meter space, supporting internal metering functions within a compact 750 x 750 x 175 mm enclosure.
Yes. It features IP2XC protection, closed cover, and RoHS/REACH compliance, making it appropriate for indoor meter rooms and control rooms. Its DSO-prewired design and grid unit capacity support reliable, compliant metering in utilities and industrial facilities.
The product includes CE conformity, RoHS and REACH declarations, and a WEEE categorization of 4. Large Equipment. It also references EU declarations of conformity for meter panels and ETIM/eClass classifications relevant to technical sourcing.
Key benefits include reduced on-site wiring work due to pre-wiring and DIN-rail compatibility, leading to faster commissioning and lower labor costs. The IP2XC enclosure and RoHS/REACH compliance minimize maintenance exposure and regulatory risk, while the modular design supports future expansions and easier component replacements.
