2CPX037192R9999
Part Number: 2CPX037192R9999
Product Information
Extended Description

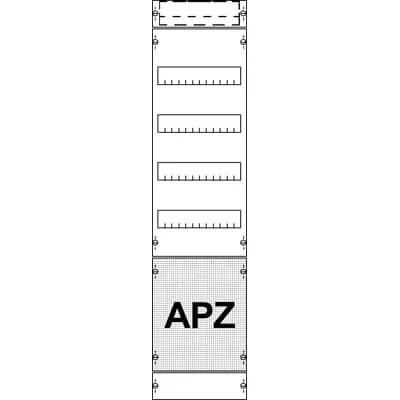

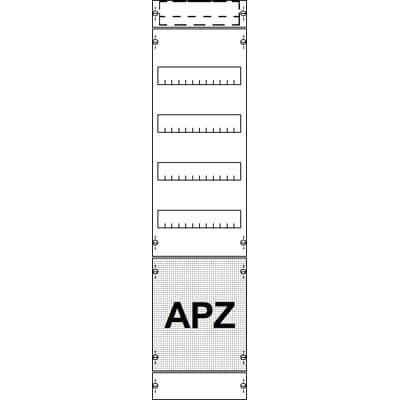

2CPX037192R9999 ABB: Interior fitting system, suitable for series: U and A and TG...SZ, empty board, dimensions in mm (H x W x D): 1050 x 250 x 160, Grid unit 7 GU, Overall height 3, panel width 1, Space units 84, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE
Number of DIN Rails for Mounting
5
Number of Modular Spacings per DIN Rail
12
Number of Rows
5
Cover Plate Type
With notch
Enclosure Type
Interior fitting system
Enclosure Type of Height
3
DIN Place Units
84
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
4.8 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.992 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
ETIM 8
EC000264 - Panel for distribution board
ETIM 9
EC000264 - Panel for distribution board
eClass
V11.0 : 27142411
Object Classification Code
U
