2CPX037606R9999
Part Number: 2CPX037606R9999
Product Information
Extended Description

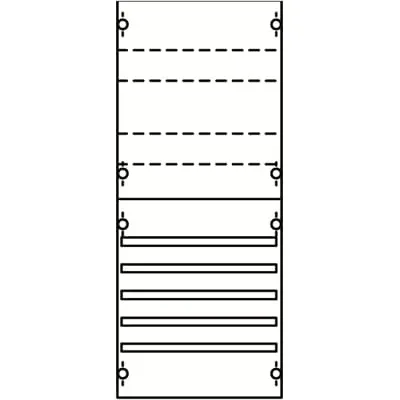

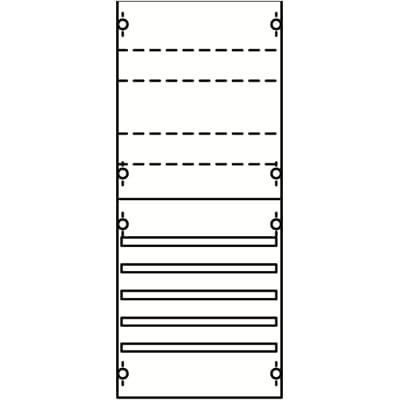

2CPX037606R9999 ABB: Interior fitting system, Distribution panels, mounted on EDF-Profile, for Busbar und terminals, Grid unit 4 GU = 600 mm, panel width 1 = 250 mm, 48 Space units, with busbar system 5-pole, Busbar alignment: horizontal, with busbar holders ZB5, Busbar center distance: 40 mm, with 5 Cu busbars, rated current maximum 360 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm, distribution panels or combinations must have the same grid units as the cabinets, in which they are installed. For floor standing and switch gear cabinets, two panels or combinations must be installed next to each other. The EDF profile rails are included in the scope of delivery.
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
360 A
Number of Poles
5P
Number of DIN Rails for Mounting
0
Number of Modular Spacings per DIN Rail
0
Number of Rows
0
Design
EDF distribution panel
Cover Plate Type
Closed
Enclosure Type
Interior fitting system
Enclosure Type of Height
0
DIN Place Units
48
Meter Boards
0
Module Function
Busbar und terminals
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
250 mm
Product Net Height
600 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
3.4 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.536 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000264 - Panel for distribution board
ETIM 9
EC000264 - Panel for distribution board
eClass
V11.0 : 27142411
Object Classification Code
U
