2CPX037611R9999
Part Number: 2CPX037611R9999
Product Information
Extended Description

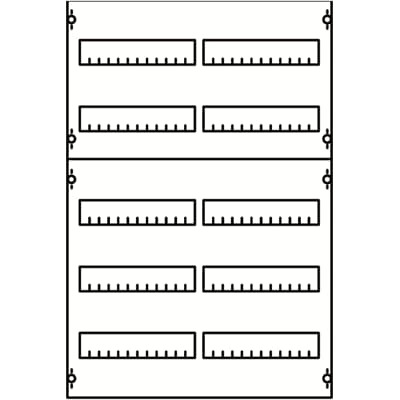

2CPX037611R9999 ABB: Interior fitting system, Distribution panels, mounted on EDF-Profile, for DIN rail mounting devices, Grid unit 5 GU = 750 mm, panel width 2 = 500 mm, 120 Space units, Row distance in mm: 125, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm, distribution panels or combinations must have the same grid units as the cabinets, in which they are installed. For floor standing and switch gear cabinets, two panels or combinations must be installed next to each other. The EDF profile rails are included in the scope of delivery.
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
400 A
Number of DIN Rails for Mounting
5
Number of Modular Spacings per DIN Rail
24
Number of Rows
5
Design
EDF distribution panel
Cover Plate Type
With notch
Enclosure Type
Interior fitting system
Enclosure Type of Height
1
DIN Place Units
120
Meter Boards
0
Module Function
DIN rail mounting devices
Terminal Type
Quick-Terminal
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
750 mm
Product Net Depth / Length
120 mm
Section Width
2
Product Net Weight
4.549 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.784 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000264 - Panel for distribution board
ETIM 9
EC000264 - Panel for distribution board
eClass
V11.0 : 27142411
Object Classification Code
U
Standards
DIN 43880
