2CPX037807R9999
Part Number: 2CPX037807R9999
Product Information
Extended Description

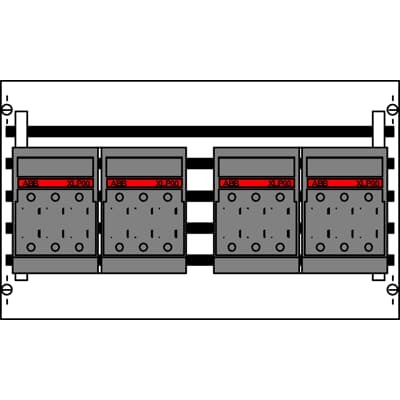

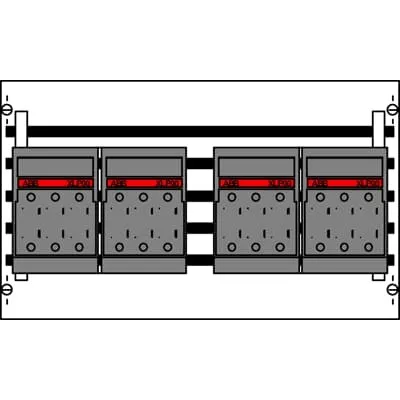

2CPX037807R9999 ABB: Interior fitting system, Combi-Sets, mounted on EDF-Profile, for Busbar system mit Betriebsmittel, Grid unit 2 GU = 300 mm, panel width 2 = 500 mm, 48 Space units, equipped with 4 NH-fuse disconnector NH00, Equipment manufacturer: ABB, ZH414, with busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZB5, Busbar center distance: 40 mm, with 3 Cu busbars, rated current maximum 360 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, usuable as of the cabinet depth of 200 mm, combination sets are plugged into the distributor panel at the top or bottom, and mounted on the other side of the cabinet. The EDF profiles and field connectors are included in the scope of delivery.
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
360 A
Number of Poles
3P
Number of Fuse Switch Disconnectors
4
Number of Knife Blade Fuse Holders
0
Number of DIN Rails for Mounting
0
Number of Modular Spacings per DIN Rail
0
Number of Rows
0
Design
EDF combi set
Enclosure Module Equipment
Includes Devices
Device
NH00
Enclosure Type
Interior fitting system
Enclosure Type of Height
000
Mounting Type
Rail system
DIN Place Units
48
Meter Boards
0
Module Function
Busbar system mit Betriebsmittel
Fuse Size
NH00
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
500 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
2
Product Net Weight
7.56 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
7.862 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002286 - Distributor assembly Low Voltage HRC fuse systems
ETIM 9
EC002286 - Distributor assembly Low Voltage HRC fuse systems
eClass
V11.0 : 27400619
Object Classification Code
U
