2CPX037827R9999
Part Number: 2CPX037827R9999
Product Information
Extended Description

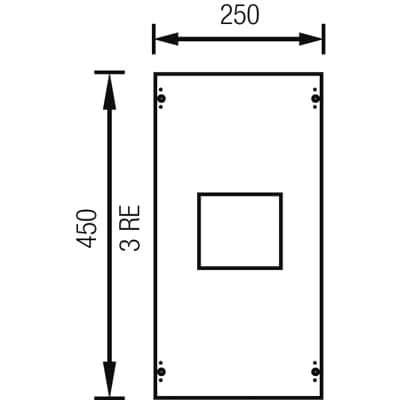

2CPX037827R9999 ABB: Interior fitting system, Combi-Sets, mounted on EDF-Profile, for Main circuit breaker Tmax not connected, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, mounting plates of sheet steel mm, Stepless adjustable via mounting bracket, unequipped for the installation of MCCB T4 / XT4, covers out of Plastic, 90 degree press and turn closure, RAL 7035, usuable as of the cabinet depth of 200 mm, combination sets are plugged into the distributor panel at the top or bottom, and mounted on the other side of the cabinet. The EDF profiles and field connectors are included in the scope of delivery.
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Operational Current (Ie)
320 A
Number of Switches
0
Number of DIN Rails for Mounting
0
Number of Modular Spacings per DIN Rail
0
Number of Rows
0
Design
EDF combi set
Enclosure Module Equipment
Excludes Devices
Device
T4
Enclosure Type
Interior fitting system
Enclosure Type of Height
00
Mounting Type
Stepless adjustable via mounting bracket
DIN Place Units
36
Meter Boards
0
Module Function
Main circuit breaker Tmax not connected
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
3.5 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.64 kg
E-Number (Norway)
2439288
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
