ABB 2CPX038160R9999 Metering exchange board - IP2XC
Part Number: 2CPX038160R9999
Quick Summary
ABB 2CPX038160R9999 Metering exchange board provides centralized metering within industrial panels for reliable, compliant energy management. On-site assembly and wiring variability can delay projects, and this panel is designed to simplify installation with a 1-story footprint, 3 reserve spaces, and lower connection space with DIN rails. It meets IP2XC protection, CE conformity, and RoHS/REACH compliance, reducing regulatory risk while supporting durable operation in harsh environments. The design also aligns with ABB meter panels and DSOs, enabling scalable expansion and streamlined procurement. By combining modular space, robust protection, and clear documentation, this solution delivers faster commissioning and predictable total cost of ownership for utility and industrial deployments.
Product Information
Extended Description

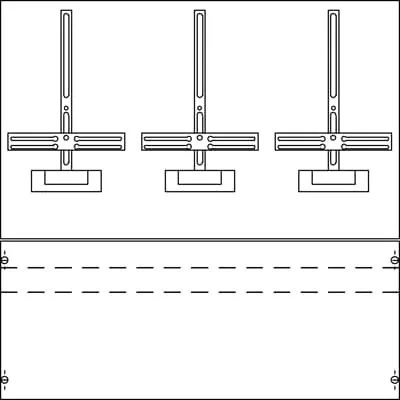

2CPX038160R9999 ABB: Metering exchange board, meter panel, with Metering cross, for the internal use, degree of protection IP2XC, Rated operational voltage 415V AC 50/60 Hz, rated current 0 A, in RAL 7035, dimensions in mm (H x W x D): 750 x 750 x 175, 1-floor, Number of reserve spaces 3, Number of transformer meter spaces 1, Note: Assembly and wiring on site, additional perhaps metering transformer terminals and wiring for current and voltage path connection to ordered, Provision of meteringboard to be defined with DSO, Grid unit 5 GU, Overall height 1, panel width 3, Space units 180, covers out of Plastic, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
1-story
Number of Phases
0
Number of Meter Cabinets
3
Number of Rows
0
Number of TSG Panels
0
Design
complete panel measuring panel
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Metering exchange board
Enclosure Type of Height
1
Protection Type
None
Plug In Meter Terminal
No
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
180
Meter Boards
1
Module Function
M-CT-field
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
36
Product Net Width
750 mm
Product Net Height
750 mm
Product Net Depth / Length
175 mm
Section Width
3
Product Net Weight
10 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
10.4 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
ETIM 8
EC000068 - Meter board
ETIM 9
EC000068 - Meter board
eClass
V11.0 : 27142417
Object Classification Code
U
The meter panel is designed as a complete metering exchange board with a compact 750 x 750 x 175 mm footprint and a 1-story design, allowing efficient integration into existing switchgear racks. This structure supports three reserve spaces, one transformer-meter space, and 180 DIN rail units, enabling a scalable metering layout with room for future expansion. Lower Connection Space with DIN Rails (Top Hat Rails) simplifies wiring and reduces on-site trenching needs, while the closed cover guards against dust and accidental contact. The design anticipates on-site assembly and wiring, so commissioning is faster and less error-prone. Constructed with plastic covers and finished in RAL 7035 light gray, the enclosure resists everyday wear and is easy to label for maintenance teams. Compliance is robust, featuring an EU RoHS declaration, REACH information, and CE conformity, minimizing regulatory risk across both industrial and utility projects. Compatible with ABB meter panels and aligned with grid operator expectations, including the note that the 'Provision of metering board to be defined with DSO' supports utility-scale deployments. The device is specified for 5 GU grid units and is ready for integration with on-site transformer and current wiring paths. From a maintenance perspective, the 10 kg weight and 750 mm width simplify handling and replacement, reducing downtime. The combination of modular spaces, straightforward on-site assembly, and RoHS/REACH compliance translates into faster project schedules and lower lifecycle costs.
