ABB 2CPX038170R9999 Metering exchange board - IP2XC
Part Number: 2CPX038170R9999
Quick Summary
ABB 2CPX038170R9999 metering exchange board enables compact meter panel assemblies for utility-scale electrical infrastructure. Engineers often struggle with space constraints, on-site wiring complexity, and tight compliance deadlines. This unit complies with CE conformity and RoHS/REACH directives while delivering IP2XC protection for indoor metering installations. Designed for meter panels and industrial enclosures, it standardizes dimensions and wiring spaces, accelerating commissioning. On-site installation is streamlined by the included lower connection space for DIN rails and field wiring, delivering reliable, compliant infrastructure.
Product Information
Extended Description

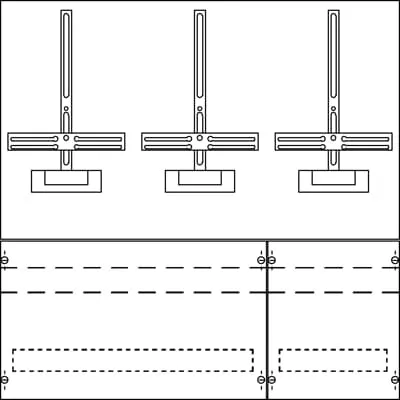

2CPX038170R9999 ABB: Metering exchange board, meter panel, with Metering cross, for the internal use, degree of protection IP2XC, Rated operational voltage 415V AC 50/60 Hz, rated current 0 A, in RAL 7035, dimensions in mm (H x W x D): 750 x 750 x 175, 1-floor, Number of reserve spaces 3, Number of transformer meter spaces 1, Note: Assembly and wiring on site, additional perhaps metering transformer terminals and wiring for current and voltage path connection to ordered, Provision of meteringboard to be defined with DSO, Grid unit 5 GU, Overall height 1, panel width 3, Space units 180, covers out of Plastic, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
1-story
Number of Phases
0
Number of Meter Cabinets
3
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Metering exchange board
Enclosure Type of Height
1
Protection Type
None
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
180
Meter Boards
1
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
36
Product Net Width
750 mm
Product Net Height
750 mm
Product Net Depth / Length
175 mm
Section Width
3
Product Net Weight
8.67 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.017 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
ETIM 8
EC000068 - Meter board
ETIM 9
EC000068 - Meter board
eClass
V11.0 : 27142417
Object Classification Code
U
Feature: IP2XC protection and closed cover design provide enhanced ingress protection and secure enclosure. Business Impact: Reduces risk of contamination and accidental contact, lowering maintenance costs and downtime. Application: Ideal for interior meter cabinets and control rooms where robust protection is required. Feature: 750 mm x 750 mm x 175 mm footprint with 180 DIN place units and 3 meter spaces. Business Impact: Supports multiple metering circuits in a single panel, optimizing space planning and panel efficiency. Application: Utility and commercial metering projects with limited enclosure volume. Feature: 1-story enclosure and DIN rail lower connection space. Business Impact: Simplifies field wiring and terminal connections, shortening installation time and improving wiring accuracy. Application: On-site assembly scenarios coordinated with DSOs for metering cross connections. Feature: RoHS and REACH compliance with CE declaration. Business Impact: Mitigates regulatory risk and streamlines procurement for EU-based installations. Application: New build and retrofit projects that demand regulatory alignment. Feature: RAL 7035 light grey finish and closed cover. Business Impact: Easy color matching with existing infrastructure and reduced environmental exposure inside enclosures. Application: Indoor metering panels in data centers, industrial plants, and distributed energy sites.
