2CPX038227R9999
Part Number: 2CPX038227R9999
Product Information
Extended Description

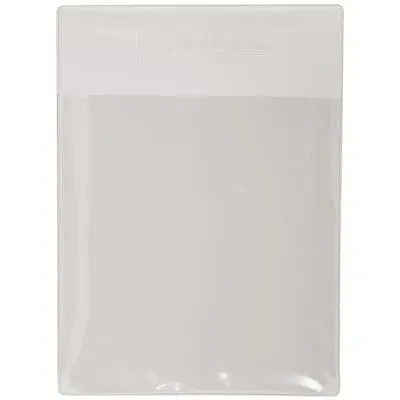

2CPX038227R9999 ABB: DIN A4 plan pockets with transparent sleeve and reinforced back, self-adhesive
Suitable For
1/10R3|1/10R4|1/10R6|1/10RG3|1/10RG4|1/10RG6|1/2FS|1/2G|1/3FS|1/81C|1/81G|1/82C|1/8C|1/8FS|1/8G|1/8H|1/8HS|1/8R3|1/8R4|1/8R6|1/8RG3|1/8RG4|1/8RG6|1/8W|1/8WS|1/8WSO|2/00A|2/00B|2/0A|2/0B|2/0C|2/0FS|2/0G|2/10R3|2/10R4|2/10R6|2/10R8|2/10RG3|2/10RG4|2/10RG6|2_x0013_Ǜ粑_xDC84__x0013_粐Ȩ粑_xFFFF__xFFFF_Ȣ粑ƛ粑Ǜ粑_xDD50__x0013_༁
Model Number
Wiring diagram pocket
Enclosure Type
Enclosure accessories
Material
Plastic
Accessories Available
No
DIN Place Units
0
Meter Boards
1
RAL Number
RAL 7035 - Light Grey
Number of Batteries
0
RoHS Information
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
210 mm
Product Net Height
297 mm
Product Net Depth / Length
3 mm
Product Net Weight
0.19 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.198 kg
E-Number (Norway)
2405806
Declaration of Conformity - CE
EU Declaration of Conformity TwinLine N cabinet system, size G, L, W, H, X
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro | 2CPC000377C0101
ETIM 8
EC000317 - Document holder (enclosure/cabinet)
ETIM 9
EC000317 - Document holder (enclosure/cabinet)
eClass
V11.0 : 27182801
Object Classification Code
U
