2CPX038253R9999
Part Number: 2CPX038253R9999
Product Information
Extended Description

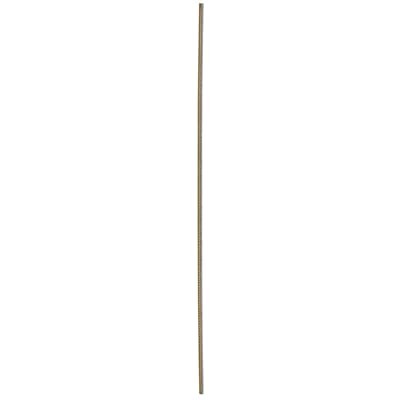

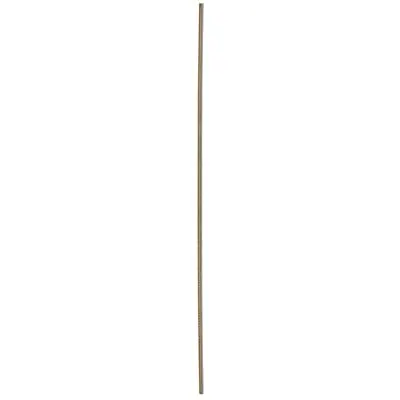

2CPX038253R9999 ABB: N/PE rail, screw-on, length 1000 mm.
Rated Operational Voltage
Maximum 230 V
Operational Voltage
230 V
Rated Current (In)
63 A
Number of Poles
1P
Number of Clamp Positions
141
Accessory Type
terminals
Enclosure Type
Enclosure accessories
Mounting Type
Direct mounting
Terminal Connection Type
Side
Insulation Material
None
Rated Cross-Section
1 - Solid-Core 1,5...4 mm² | 2 - Fine-Strand with Cable End Sleeve 0,75...4 mm² | 3 - Fine-Strand without Cable End Sleeve 0 mm² | 4 - Multi-Wired 4 mm²
Terminal Type
Terminal Bar
RoHS Information
EU Declaration of Conformity Consumer Unit UK600
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
26bfca27-4cb8-41c1-bcd0-a5e95920cf8d Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
1000 mm
Product Net Height
9 mm
Product Net Depth / Length
7 mm
Product Net Weight
0.49 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.51 kg
Declaration of Conformity - CE
EU Declaration of Conformity Consumer Unit UK600
ETIM 8
EC001284 - Single- and multi-pole terminal strip
ETIM 9
EC001284 - Single- and multi-pole terminal strip
eClass
V11.0 : 27141106
Object Classification Code
U
