ABB 2CPX038484R9999 Metering Exchange Board - IP2XC
Part Number: 2CPX038484R9999
Quick Summary
ABB 2CPX038484R9999 Metering Exchange Board is a compact metering solution for internal electrical distribution. It addresses space constraints and complex wiring challenges by delivering a ready-to-install meter panel module that fits inside standard enclosures. This design emphasizes CE conformity, RoHS and REACH declarations, plus robust IP protection to simplify compliance in indoor environments. With 144 DIN place units and a 520x300x160 mm footprint, it supports scalable metering layouts while maintaining a clean, serviceable installation. The result is faster deployments, reduced commissioning risk, and predictable lifecycle costs for building automation and utility applications.
Product Information
Extended Description

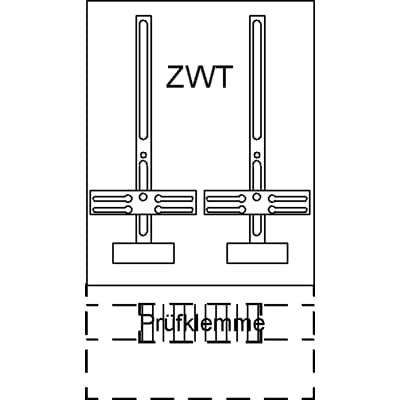

2CPX038484R9999 ABB: Metering exchange board, meter panel, with Metering cross, for the internal use, degree of protection IP2XC, Rated operational voltage 415V AC Hz, rated current 0 A, in RAL 7035, dimensions in mm (H x W x D): 520 x 300 x 160, Number of SG spaces 1, Number of transformer meter spaces 1, Metering wiring, voltage path Voltage path fuse protection, Grid unit 5 GU, Overall height 00, Space units 144, covers out of Plastic, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
1-story
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Metering exchange board
Enclosure Type of Height
00
Cover Style
Closed
DIN Place Units
144
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
300 mm
Product Net Height
520 mm
Product Net Depth / Length
160 mm
Product Net Weight
3.2 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.328 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature: Compact footprint and DIN-rail compatibility. Business Impact: Frees cabinet space and simplifies installation, reducing cabinet redesigns and field wiring. Application: Metering panels in control cabinets where space is at a premium. Feature: IP2XC protection and closed cover. Business Impact: Enhanced safety and reliability in indoor environments, lowering maintenance events and fault exposure. Application: Indoor metering cross panels in industrial automation setups. Feature: 144 DIN place units with 5 GU grid and DIN rails. Business Impact: Structured wiring, organized terminal access, and easier future expansion, cutting wiring errors and downtime. Application: Large metering arrays in utility and process control cabinets. Feature: Material and finish (RAL 7035 light grey, plastic covers). Business Impact: Durable, easy-to-clean exterior with consistent appearance across enclosures, aiding maintenance and inventory management. Application: New builds and retrofits where standardization matters. Feature: RoHS and REACH compliance with CE declaration. Business Impact: Regulatory risk reduction and smoother procurement in multinational projects, avoiding compliance delays. Application: Global deployments across building tech and industrial facilities.
Get a Quick Quote for a ABB 2CPX038484R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX038484R9999?
Enquire Now
FAQs
Yes. The device features a lower connection space with Top Hat DIN rails and 144 DIN place units, enabling straightforward DIN rail mounting in typical control cabinets and minimizing cabinet redesigns during integration.
The meter board is rated for a maximum operational voltage of 415 V and a nominal current of 0 A, with a 1-story model configuration and 1 meter panel, 1 meter cabinet, and 144 DIN units to support metering layouts.
It carries IP2XC protection for indoor use, CE conformity, RoHS compliance (EU Directive 2011/65/EU and 2015/863), REACH declarations, and WEEE categorized for large equipment, ensuring regulatory alignment for B2B deployments.
Yes. The closed cover, light grey RAL 7035 enclosure, and 520 × 300 × 160 mm footprint are designed for indoor electrical distribution and metering cross-panels, offering reliable support in control cabinets and building automation environments with straightforward wiring and maintenance.
The design reduces installation time through DIN-rail compatibility and standardized DIN spacing, minimizes wiring errors with organized 144 DIN units, and lowers regulatory risk via CE, RoHS, and REACH declarations, contributing to lower lifecycle costs and faster project payback in industrial facilities.
