ABB 2CPX038485R9999 Metering Exchange Board - IP2XC
Part Number: 2CPX038485R9999
Quick Summary
Metering exchange board ABB 2CPX038485R9999 provides organized cross connections for internal metering panels in power distribution. Facility engineers often wrestle with wiring complexity and space constraints; this enclosure simplifies assembly, improves traceability, and enhances safety on crowded switchboards. With IP2XC protection, CE conformity, and RoHS/REACH compliance, it meets critical safety and environmental requirements for indoor metering installations. The design supports DIN-rail mounting and offers 144 DIN place units across 24 modular spacings, delivering scalable capacity for meter cabinets and half indirect metering. Its light-grey RAL 7035 housing and durable plastic covers help maintain a clean, maintenance-friendly control room appearance while enabling efficient future expansions.
Product Information
Extended Description

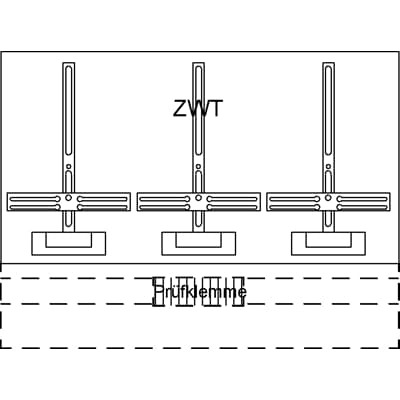

2CPX038485R9999 ABB: Metering exchange board, meter panel, with Metering cross, for the internal use, degree of protection IP2XC, Rated operational voltage 415V AC Hz, rated current 0 A, in RAL 7035, dimensions in mm (H x W x D): 520 x 650 x 160, Number of reserve spaces 1, Number of SG spaces 1, Number of transformer meter spaces 1, Metering wiring, voltage path Voltage path fuse protection, Grid unit 5 GU, Overall height 00, Space units 144, covers out of Plastic, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
1-story
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Metering exchange board
Enclosure Type of Height
00
Cover Style
Closed
DIN Place Units
144
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
650 mm
Product Net Height
520 mm
Product Net Depth / Length
160 mm
Product Net Weight
6.2 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
6.448 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature: IP protection and enclosure integrity. Benefit: Enables safe operation in indoor environments with controlled dust; reduces risk of fault propagation to sensitive metering circuits. Application: Ideal for meter cabinets where reliable cross-connection wiring is needed. Feature: High DIN-rail compatibility and dense capacity. Benefit: Supports 144 DIN place units and 24 modular spacings, enabling large metering schemes without additional cabinets. Application: Metering cross installations in medium- to high-density electrical rooms. Feature: Integrated wiring pathways and voltage path protection. Benefit: Simplifies wiring routing and protects metering circuits from short circuits or overload; speeds fault isolation. Application: Half indirect metering across distribution panels. Feature: Durable, color-stable housing (RAL 7035). Benefit: Maintains appearance and ergonomic clarity over time; easier maintenance planning. Application: Indoor electrical infrastructure projects with frequent visual inspections. Feature: RoHS and REACH compliance with CE declaration. Benefit: Reduces regulatory risk and simplifies procurement for EU projects. Application: Regulated environments requiring formal conformity documentation. Feature: Lower connection space with support for DIN Rails (Top Hat Rails). Benefit: Streamlines installation and future upgrades by matching common electrical-room standards. Application: Retrofit or new-metering installations in existing switchgear racks.
