ABB 2CPX038486R9999 Metering exchange board - IP2XC
Part Number: 2CPX038486R9999
Quick Summary
Metering exchange board enables clean, centralized metering and cross-connection in industrial power distributions. When space is at a premium, wiring errors and misallocated space can derail projects and complicate maintenance. This ABB meter panel delivers IP2XC protection, CE conformity, and RoHS/REACH compliance to withstand factory environments while simplifying procurement. By integrating DIN rails and 168 DIN place units, it aligns with existing enclosures and supports both direct and indirect metering workflows. The result is improved reliability, faster commissioning, and a clearer path to scalable metering infrastructure within your enclosures & electrical infrastructure portfolio.
Product Information
Extended Description

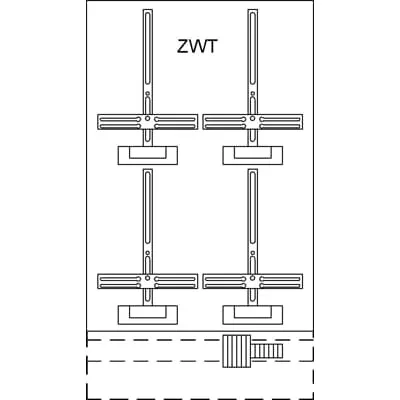

2CPX038486R9999 ABB: Metering exchange board, meter panel, with Metering cross, for the internal use, degree of protection IP2XC, Rated operational voltage 415V AC Hz, rated current 0 A, in RAL 7035, dimensions in mm (H x W x D): 480 x 785 x 160, Number of reserve spaces 2, Number of SG spaces 1, Number of transformer meter spaces 1, Metering wiring, Grid unit 7 GU, Overall height 1, Space units 168, covers out of Plastic, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
2-story
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Metering exchange board
Enclosure Type of Height
1
Cover Style
Closed
DIN Place Units
168
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
785 mm
Product Net Height
480 mm
Product Net Depth / Length
160 mm
Product Net Weight
8.5 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
8.84 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature is IP2XC enclosure protection that directly reduces the risk of dust ingress and incidental contact with live components, increasing equipment reliability and safety in confined spaces. Business Impact: lower maintenance costs and reduced downtime due to protection against daily production hazards. Application: internal meter panels in industrial switchgear rooms where environmental exposure is a concern. Feature is compact dimensions and DIN rail compatibility with 168 DIN place units and a 480 x 785 x 160 mm footprint, enabling seamless integration into standard enclosures. Business Impact: saves valuable installation space and accelerates panel build-outs; Application: new build-outs and retrofits in facilities with space constraints. Feature is regulatory compliance including RoHS, REACH, CE declarations, and WEEE categorization, reducing regulatory risk and simplifying audits. Business Impact: smoother supplier qualification and lower risk for compliance-driven procurement; Application: panel assemblies for indirect metering and grid metering in manufacturing plants. Feature is material and finish details including RAL 7035 light grey color and closed cover style, supporting consistent aesthetics and predictable maintenance cycles. Business Impact: improved visual conformity and easier fault tracing; Application: shared electrical infrastructure in production lines. Feature is dedicated metering spaces with one meter cabinet, one meter panel, one SG space, and one transformer meter space, plus two reserve spaces for future upgrades. Business Impact: future-proofing and lower rework costs; Application: scalable energy monitoring in evolving facilities. Feature is explicit compatibility with lower connection space and DIN rails (Top Hat Rails), enabling straightforward installation and future reconfigurations. Business Impact: faster field wiring and reduced installation error rate; Application: retrofits in existing ABB meter panels and new installations alike.
Get a Quick Quote for a ABB 2CPX038486R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX038486R9999?
Enquire Now
FAQs
Yes. The meter panel includes a Lower Connection Space with DIN Rails (Top Hat Rails) and 168 DIN place units, allowing straightforward mounting inside standard enclosures. Ensure adequate clearance for wiring and access during maintenance, and verify enclosure dimensions align with the 480 x 785 x 160 mm footprint.
Key specs include Rated Operational Voltage up to 415 V and Rated Current of 0 A for the metering cross configuration. It features IP2XC protection, a closed cover, and is designed for half indirect metering with one meter cabinet, one meter panel, and a transformer meter space, suitable for controlled internal metering environments.
Yes. The unit is described as a Metering exchange board with a Metering cross and space for indirect metering components, including a transformer meter space and grid unit. It supports half indirect metering configurations, making it appropriate for industrial energy monitoring while maintaining clear separation of metering circuits.
The panel carries CE conformity, RoHS compliance (Directive 2011/65/EU with 2015/863), REACH declarations, and WEEE categorization. ETIM and eClass classifications also identify it as a meter panel, aiding procurement and integration within regulated electrical infrastructures.
The design reduces installation risk with DIN-rail integration, enables future expansion via reserve spaces, and lowers maintenance time through standardized DIN layouts and consistent finishes. Compliance reduces audit overhead, while the compact footprint saves enclosure space, contributing to lower total cost of ownership over the system lifecycle.
