2CPX038519R9999
Part Number: 2CPX038519R9999
Product Information
Extended Description

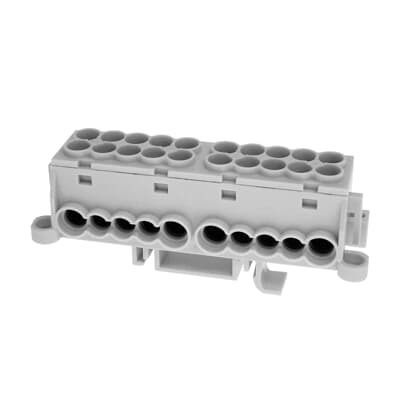

2CPX038519R9999 ABB: Main line terminal 2-pole, 3x 16mm² and 2x 25mm² each
Rated Current (In)
63 A
Number of Poles
2P
Number of Connections
Number of connections < 6 mm2: 0 | Number of connections < AWG 6: 0 | Number of connections > 25 mm2: 0 | Number of connections > 250 kcmil: 0 | Number of connections 10 mm2: 0 | Number of connections 16 mm2: 6 | Number of connections 25 mm2: 4 | Number of connections 250 kcmil: 0 | Number of connections AWG 2: 0 | Number of connections AWG 4/0: 0 | Number of connections AWG 4: 4 | Number of connections AWG 6: 6 | Number of connections total: 20
Connection Type
Screw
Enclosure Type
Terminals
Mounting Type
DIN rail
DIN Place Units
0
Meter Boards
1
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
8e8d0140-63f6-4d6b-875d-f87dd57818af Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
100 mm
Product Net Height
40 mm
Product Net Depth / Length
30 mm
Product Net Weight
0.128 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.133 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
ETIM 8
EC000275 - Rail terminal bar
ETIM 9
EC000275 - Main line branch terminal
eClass
V11.0 : 27400603
Object Classification Code
U
