2CPX038557R9999
Part Number: 2CPX038557R9999
Product Information
Extended Description

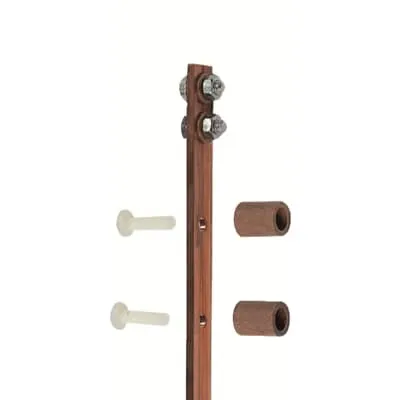

2CPX038557R9999 ABB: busbars as N/PE-busbar, dimensions: 20 x 4 mm, with a length of 230 mm, for a rated current of 250 A, N/PE-busbar system, 1-pole, packaging unit 1 piece
Rated Current (In)
250 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
N/PE-busbar system
Surface Finishing
Untreated
DIN Place Units
0
Meter Boards
1
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
39c2c31c-9866-4cc7-a0b7-cb75b92d7bea Germany (DE)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
230 mm
Product Net Height
20 mm
Product Net Depth / Length
4 mm
Product Net Weight
0.31 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.322 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZH53
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
