2CPX039077R9999
Part Number: 2CPX039077R9999
Product Information
Extended Description

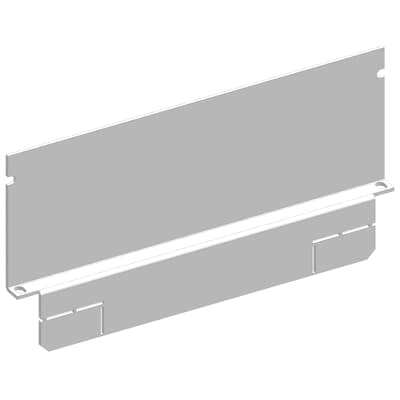

2CPX039077R9999 ABB: Horizontal plastic bulkhead, field width 1 (250 mm), color similar to RAL 7035, not arc fault-proof, for partitioning from neighboring area, distributor field (rear mount for EDF rails).
Enclosure Type
Interior fitting system
Surface Finishing
Untreated
Material
Plastic
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
15 mm
Product Net Depth / Length
123 mm
Product Net Weight
0.093 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.097 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
ETIM 8
EC000770 - Separation plate for meter-/distribution boards
ETIM 9
EC000770 - Separation plate for meter-/distribution boards
eClass
V11.0 : 27142412
Object Classification Code
U
