2CPX039936R9999
Part Number: 2CPX039936R9999
Product Information
Extended Description

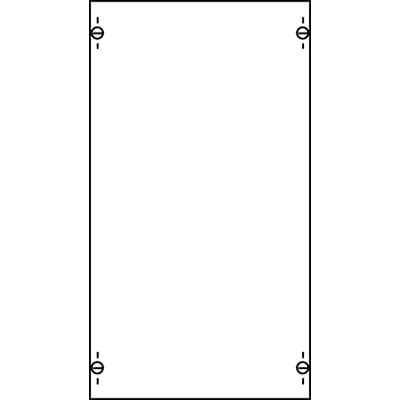

2CPX039936R9999 ABB: Distribution panel, suitable for series: ComfortLine, empty board, for busbars, Rated operational voltage 400V AC 50/60 Hz, dimensions in mm (H x W x D): 450 x 250 x 160, Earthing system TN-S, 5-pole, Grid unit 3 GU, Overall height 00, panel width 1, Space units 36, covers out of Plastic, 90 degree press and turn closure, RAL 7035, without N/PE
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of Poles
5P
Number of DIN Rails for Mounting
0
Number of Modular Spacings per DIN Rail
0
Number of Rows
0
Cover Plate Type
Closed
Enclosure Type
Distribution panel
Enclosure Type of Height
00
DIN Place Units
36
Module Function
busbars
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
2.416 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.513 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
ETIM 8
EC000264 - Panel for distribution board
ETIM 9
EC000264 - Panel for distribution board
eClass
V11.0 : 27142411
Object Classification Code
U
