2CPX039938R9999
Part Number: 2CPX039938R9999
Product Information
Extended Description

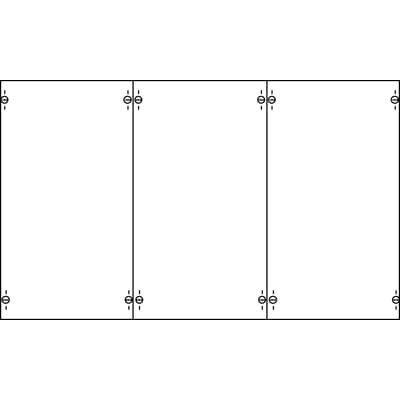

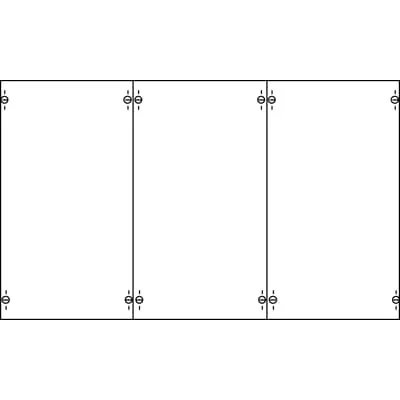

2CPX039938R9999 ABB: Distribution panel, suitable for series: ComfortLine, empty board, for busbars, Rated operational voltage 400V AC 50/60 Hz, dimensions in mm (H x W x D): 450 x 750 x 160, Earthing system TN-S, 5-pole, Grid unit 3 GU, Overall height 00, panel width 3, Space units 108, covers out of Plastic, 90 degree press and turn closure, RAL 7035, without N/PE
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of Poles
5P
Number of DIN Rails for Mounting
0
Number of Modular Spacings per DIN Rail
0
Number of Rows
0
Cover Plate Type
With notch
Enclosure Type
Distribution panel
Enclosure Type of Height
00
DIN Place Units
108
Module Function
busbars
RoHS Information
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
750 mm
Product Net Height
450 mm
Product Net Depth / Length
160 mm
Section Width
3
Product Net Weight
6.585 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
6.849 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Cabinet System Type A/B
ETIM 8
EC000264 - Panel for distribution board
ETIM 9
EC000264 - Panel for distribution board
eClass
V11.0 : 27142411
Object Classification Code
U
