2CPX040053R9999
Part Number: 2CPX040053R9999
Product Information
Extended Description

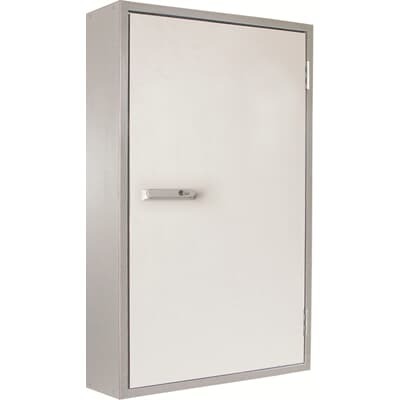

2CPX040053R9999 ABB: Fire resistance - wall cabinet, series UF, empty cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP41, fire resistance 90 min tested according to , Reduce fire load 90 min in line with , Maintain functionality 90 min in line with , Impact strength IK08, Rated operational voltage 400V AC 50/60 Hz, Coated, in RAL 7035, enclosure out of non flammable material, single-leaf door, door out of non flammable material, with Swivel handle with half cylinder, door opening angle 180 degree, door hinge links, cable entry on top via fire stop cable entry, on bottom via fire stop cable entry, dimensions in mm (H x W x D): 450 x 332 x 205, Grid unit 4 GU, Overall height 0, panel width 1, Space units 48, pre-assembled for installation with Modules, Combi-Sets, CombiLine-Module on EDF-mounting frame
Flammability Hazard Rating
E90
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of Flange Openings
1
Number of Conduit Inlets
1
Number of Rows
4
Configuration Type
pre-assembled for installation with Modules, Combi-Sets, CombiLine-Module on EDF-mounting frame
Cover Plate Type
None
Enclosure Type
Fire resistance - wall cabinet
Enclosure Type of Height
0
Mounting Type
Flush mounting
Door Type
Single
Surface Finishing
Coated
Housing Material
Other
Accessories Available
No
Cover Style
with Notch
DIN Place Units
48
Meter Boards
0
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Fire protection cabinet
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240917
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP41
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
12
Product Net Width
332 mm
Product Net Height
450 mm
Product Net Depth / Length
205 mm
Section Width
1
Product Net Weight
37 kg
Built-In Depth (t2)
118 mm
Thickness
Cabinet Plate 72 mm | Door Plate 72 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
37 kg
Declaration of Conformity - CE
EU Declaration of Conformity Fire protection cabinet
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
Object Classification Code
U
Circuit Integrity
E 90
