2CPX041057R9999
Part Number: 2CPX041057R9999
Product Information
Extended Description

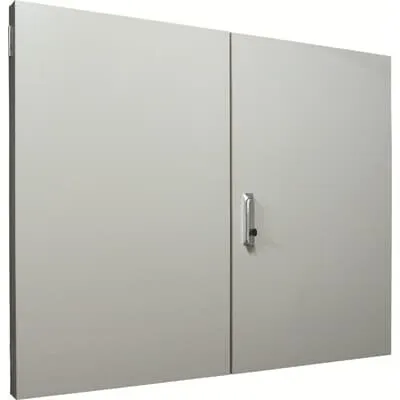

2CPX041057R9999 ABB: Fire protection door, series VF, for the internal use, with closed doorframe and door, degree of protection IP54, fire resistance 30 min tested according to , Reduce fire load 30 min in line with , Maintain functionality 30 min in line with , Surface-coated, in RAL 7035, enclosure out of non flammable material, double door, door out of non flammable material, with Swivel handle with half cylinder, door opening angle 180 degree, door hinge right and left, dimensions in mm (H x W x D): 1195 x 1295 x 51, Shutter frame dimensions in mm (H x W x D): 1195 x 1295 x 22, Grid unit 6 GU, Overall height 2, panel width 4, Space units 288
Flammability Hazard Rating
E30
Model Number
Protective door
Enclosure Type
Fire protection door
Enclosure Type of Height
2
Door Type
Double
Surface Finishing
Surface-coated
Accessories Available
No
DIN Place Units
288
Meter Boards
0
Color
Light grey
RoHS Information
EU Declaration of Conformity Fire protection cabinet
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240917
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP54
Product Net Width
1295 mm
Product Net Height
1195 mm
Product Net Depth / Length
51 mm
Section Width
4
Product Net Weight
72 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
72 kg
Declaration of Conformity - CE
EU Declaration of Conformity Fire protection cabinet
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.0 : 27182204
Object Classification Code
U
Circuit Integrity
E 30
