2CPX041083R9999
Part Number: 2CPX041083R9999
Product Information
Extended Description

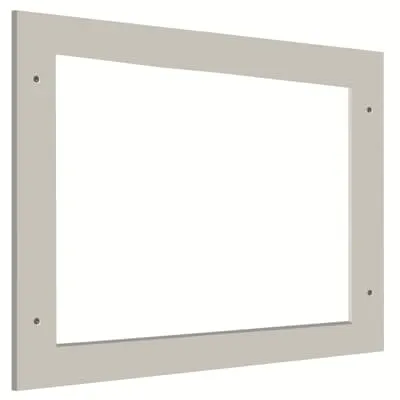

2CPX041083R9999 ABB: Extension frame for 2-leaf fire protection facing doors, usable for facing doors with overall height 2 and field width 4. If the current arrangement protrudes more than 20 mm over the wall, this additional extension frame can be ordered for the facing door. Internal dimensions in mm (H x W x D) 965 x 1065 x 22, external dimensions in mm (H x W x D) 1195 x 1295 x 22.
Flammability Hazard Rating
E90
Accessory Type
door with frame
Enclosure Type
Fire protection door
Enclosure Type of Height
2
Surface Finishing
Surface-coated
Accessories Available
No
DIN Place Units
288
Meter Boards
0
Color
Grey (similar to RAL7035)
RoHS Information
EU Declaration of Conformity Fire protection cabinet
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240917
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP54
Product Net Width
1295 mm
Product Net Height
1195 mm
Product Net Depth / Length
22 mm
Section Width
4
Product Net Weight
18 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
18 kg
Declaration of Conformity - CE
EU Declaration of Conformity Fire protection cabinet
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.0 : 27182807
Object Classification Code
U
Circuit Integrity
E 90
