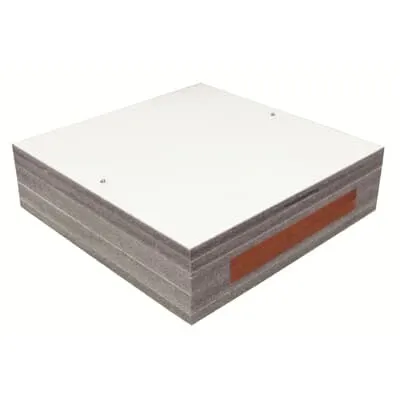

ABB 2CPX041094R9999 Fire-resistance enclosure - IP41
Part Number: 2CPX041094R9999
Quick Summary
ABB 2CPX041094R9999 is a fire-resistance enclosure designed to protect screw-terminal wiring in industrial control panels. Operators struggle with fire-damage risk and limited mounting space in automated lines. It delivers IP41 protection, isolated Class II operation, and EN 13501-1 fire-rating, plus CE conformity. Designed for panel builders and OEMs, it supports reliable, scalable internal layouts while accelerating compliance-driven projects. With 550x550 mm footprint, 72 DIN places across three rows, and a robust non-flammable coated housing, it offers durable protection and consistent performance under demanding industrial conditions. The combination of safety, durability, and RoHS/REACH compliance helps reduce lifecycle risk and total cost of ownership, enabling faster deployment and safer operations across automation projects.
Product Information
Extended Description
2CPX041094R9999 ABB: Fire resistance screw terminal enclosure, series KF, empty housing, for the internal use, With coverplate, class of protection II (double insulated), degree of protection IP41, material according to A2 — not flammable, EN 13501-1, fire resistance 30 min tested according to , Reduce fire load 30 min in line with , Maintain functionality 30 min in line with , Impact strength IK08, Rated operational voltage 400V AC 50/60 Hz, Coated, in RAL 7035, enclosure out of non flammable material, without door, door out of non flammable material, dimensions in mm (H x W x D): 550 x 550 x 128, Grid unit 3 GU, Overall height 00, panel width 2, Space units 72
Flammability Hazard Rating
E30
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of Flange Openings
2
Number of Conduit Inlets
4
Number of Rows
3
Cover Plate Type
None
Enclosure Type
Fire resistance screw terminal enclosure
Enclosure Type of Height
00
Mounting Type
Other
Door Type
Without Door
Surface Finishing
Coated
Housing Material
Other
Accessories Available
No
Cover Style
with Notch
DIN Place Units
72
Meter Boards
0
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Fire protection cabinet
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240917
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP41
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
24
Product Net Width
550 mm
Product Net Height
550 mm
Product Net Depth / Length
128 mm
Section Width
2
Product Net Weight
34 kg
Built-In Depth (t2)
84 mm
Thickness
Cabinet Plate 72 mm | Door Plate 72 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
34 kg
Declaration of Conformity - CE
EU Declaration of Conformity Fire protection cabinet
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
Object Classification Code
U
Circuit Integrity
E 30
Feature → Business Impact → Application: Fire resistance up to 30 minutes tested according to EN 13501-1 reduces fire load and preserves critical control functionality during incidents, improving plant safety and uptime. This enables safer startup/shutdown sequences in automated lines and supports regulatory compliance for fire protection cabinets. Feature → Business Impact → Application: IP41 protection with Isolated (Class II) insulation protects internal screw-terminals and wiring from incidental dust ingress and electrical leakage, enabling dense internal layouts within a 550x550 mm footprint. Use in indoor automation panels, switchgear housings, and control cabinets where space optimization is essential. Feature → Business Impact → Application: 72 DIN places across 3 rows provide high-density mounting for terminal blocks and small- to medium-sized control circuits, simplifying wire management and reducing panel build time in OEM and automation projects. Feature → Business Impact → Application: Coated, non-flammable housing finished in RAL 7035 delivers durable service life in harsh environments, lowering maintenance costs and extending service intervals for plant equipment. Feature → Business Impact → Application: RoHS and REACH compliance along with CE declarations streamline procurement, mitigate regulatory risk, and support global deployments across manufacturing sites. Feature → Business Impact → Application: Empty housing intended for internal use with no door simplifies installation and allows custom wiring schemes, while remaining compatible with standard panel depths and mounting provisions in medium-sized control enclosures.
Get a Quick Quote for a ABB 2CPX041094R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041094R9999?
Enquire Now
FAQs
It is a fire-resistance empty housing designed for internal screw-terminal wiring within industrial control panels. With a 550x550x128 mm footprint, 72 DIN placements across 3 rows, IP41 protection, and isolated Class II insulation, it supports safe, compact interior layouts for 400 V systems.
The enclosure accommodates 72 DIN places across three rows. Plan wiring with central routing and standardized terminal blocks to maximize space efficiency while maintaining clearance and access for maintenance in a 550x550 mm footprint.
It features IP41 protection, Isolated (Class II) insulation, EN 13501-1 fire resistance, and CE conformity. RoHS and REACH declarations are provided, supporting regulatory compliance for global installations.
Yes, the standard configuration is a doorless enclosure suitable for internal use. The listed spec shows Cover Plate Type as None, though some configurations may offer cover plate options; verify with the supplier for specific build variants and mounting compatibility.
By delivering up to 30 minutes of fire resistance, CE/ RoHS/ REACH compliance, and durable coated construction, the enclosure reduces downtime, simplifies regulatory approvals, and extends service life, yielding lower lifecycle costs and faster project deployment.
