2CPX041124R9999
Part Number: 2CPX041124R9999
Product Information
Extended Description

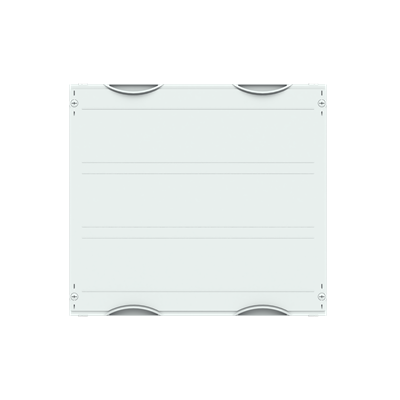

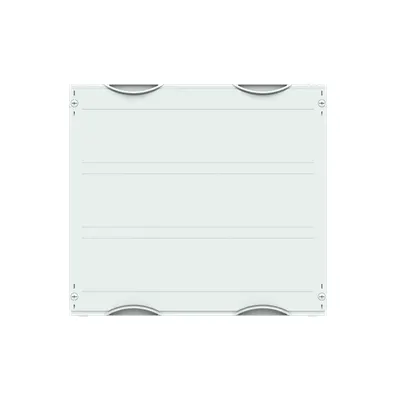

2CPX041124R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Busbar system vertical, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, unequipped for the installation of , with busbar system 4-pole, Busbar alignment: vertical, with busbar holders ZX518, Busbar center distance: 40 mm, with 4 Cu busbars, rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
440 A
Rated Short-time Withstand Current Low Voltage (Icw)
20 kA
Rated Service Short-Circuit Breaking Capacity (Ics)
20 kA
Busbar Position
Center Central
Number of Poles
4P
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
72
Meter Boards
0
Module Function
Busbar system vertical
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
500 mm
Product Net Height
450 mm
Product Net Depth / Length
200 mm
Section Width
2
Product Net Weight
3.78 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.78 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43673-1
