2CPX041130R9999
Part Number: 2CPX041130R9999
Product Information
Extended Description

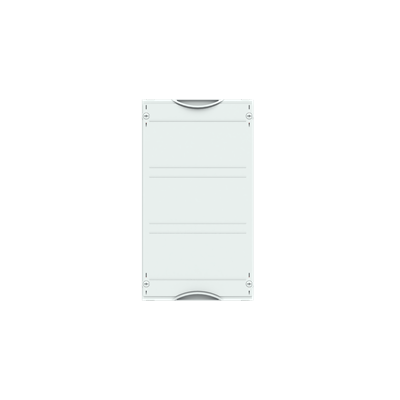

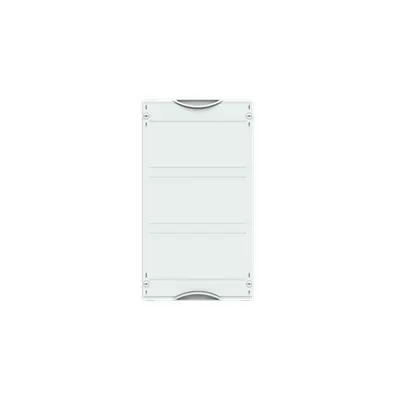

2CPX041130R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Vertical terminals, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, assembled with DIN rail 35 x 15 mm with perforation for wire holders, Stepless adjustable via mounting bracket, usuable depth of 66 mm up to 113 mm, usuable height of 438 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
850 A
Number of Rows
3
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Mounting Type
Stepless adjustable via mounting bracket
DIN Place Units
36
Meter Boards
0
Module Function
Vertical terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
114f4144-efc4-474d-b9a6-6bc82d04c40b Germany (DE)
WEEE Category
Product Not in WEEE Scope
Protection Class
Grounded or Insulated (Class III)
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
3.43 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.562 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001894 - Distributor assembly terminal blocks
ETIM 9
EC001894 - Distributor assembly terminal blocks
eClass
V11.0 : 27400609
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
