ABB 2CPX041200R9999 Interior Fitting Module - DIN EN 61439-2
Part Number: 2CPX041200R9999
Quick Summary
ABB 2CPX041200R9999 is an interior fitting module for DIN rail mounting in panel cabinets. Engineers often struggle with compact, organized spaces in control panels where wiring becomes tangled and commissioning times rise. This module supports 12 modular spacings per DIN rail in a single 1-row enclosure, with a 150 mm by 250 mm footprint and 120 mm built-in depth, designed for up to 400 V operation. It carries CE conformity and DIN EN 61439-2/3 compliance, alongside RoHS and REACH declarations, ensuring safe, regulation-ready installations. By streamlining assembly, improving space utilization, and simplifying component sourcing in ABB CombiLine systems, it delivers faster deployments, reduced wire routing errors, and more reliable panel performance for complex automation projects.
Product Information
Extended Description

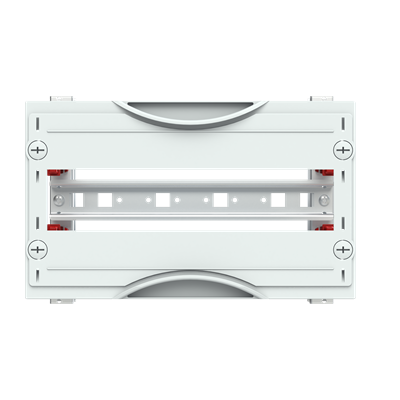

2CPX041200R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for DIN rail mounting devices, Grid unit 1 GU = 150 mm, panel width 1 = 250 mm, 12 Space units, Row distance in mm: 125 / 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
1
Number of Modular Spacings per DIN Rail
12
Number of Rows
1
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
DIN Place Units
12
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
150 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
0.347 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.347 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
