ABB 2CPX041201R9999 Interior fitting module - DIN EN 61439-3
Part Number: 2CPX041201R9999
Quick Summary
ABB 2CPX041201R9999 interior fitting module enables compact DIN rail mounting for CombiLine panel systems. Engineers struggle to fit 24 modular spaces into 150 mm cabinet depths without compromising accessibility. It complies with DIN EN 61439-3, CE declarations, and RoHS restrictions, ensuring safety and regulatory alignment. This design delivers reliable space utilization, predictable maintenance, and lower total cost of ownership. For panel builders and OEMs, it offers streamlined installation with 1 GU grid and 24 DIN place units, balancing performance with future-proofing. The enclosure uses perforated DIN rails for wire holders and a 90-degree closure, while the light grey finish supports easy inspection and durable service life.
Product Information
Extended Description

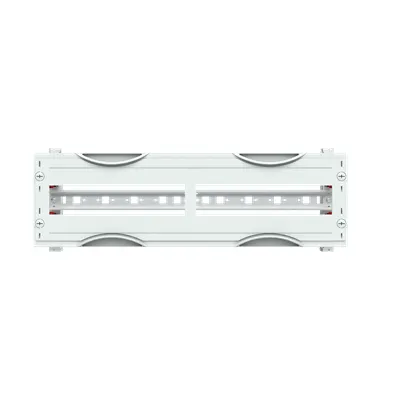

2CPX041201R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for DIN rail mounting devices, Grid unit 1 GU = 150 mm, panel width 2 = 500 mm, 24 Space units, Row distance in mm: 125 / 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
1
Number of Modular Spacings per DIN Rail
24
Number of Rows
1
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
DIN Place Units
24
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
150 mm
Product Net Depth / Length
120 mm
Section Width
2
Product Net Weight
0.639 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.639 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
Feature: 24 DIN place units in a 150 mm grid, enabling dense mounting without expanding cabinet depth. Benefit: maximizes space efficiency and reduces cabinet footprint, lowering enclosure costs in large control panels. Application: suitable for CombiLine interior fittings in factory automation cabinets. Feature: 1 DIN rail mounting with 35 x 15 mm perforated rail for wire holders. Benefit: faster, neater cabling with secure routing, cutting installation time and errors. Application: standard DIN rail systems in industrial panels. Feature: 90-degree press and turn closure with plastic covers. Benefit: simplifies assembly and maintenance access, improving serviceability for future upgrades. Application: bolt-on cabinet closures in tight installations. Feature: RoHS and REACH compliance with EU declarations. Benefit: ensures regulatory conformity, reduces risk in procurement, and supports sustainable sourcing. Application: regulated manufacturing environments and supply chains. Feature: Enclosure dimensions and finish (500 mm x 150 mm x 120 mm, light grey, RAL 7035). Benefit: predictable fit in 2-section panel widths and easy heat management, aiding inspection and maintenance. Application: DIN rail-mounted control enclosures for machine builders.
Get a Quick Quote for a ABB 2CPX041201R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041201R9999?
Enquire Now
FAQs
Yes. It is designed for 35 x 15 mm DIN rails, supports 1 DIN rail mounting, and provides 24 DIN place units within a 150 mm cabinet height, 500 mm width, and 120 mm depth, making it ready for typical CombiLine interior fittings in control cabinets.
The unit supports a rated operational voltage of up to 400 V. It carries CE conformity and RoHS compliance, with REACH declarations, aligning with DIN EN 61439-3 and relevant safety standards for industrial panels.
Yes. The product provides 24 modular spacings per DIN rail, optimized for a 1 GU grid. This enables dense yet organized layouts, improving traceability and future upgrades in panel assemblies.
It features a perforated DIN rail for wire holders and a 90-degree press and turn closure, which accelerates assembly, improves cabling routes, and reduces maintenance downtime in busy control cabinets.
The product net weight is 0.639 kg, with packaging Level 1 units listed as a single piece per pack, simplifying handling, shipping, and on-site stocking in procurement workflows.
