ABB 2CPX041202R9999 Interior fitting module - DIN EN 61439
Part Number: 2CPX041202R9999
Quick Summary
ABB 2CPX041202R9999 interior fitting module provides reliable DIN rail mounting for cabinet-based control systems. Engineers often struggle with space optimization and wiring clarity in compact panels, leading to longer install times and higher risk of errors. It carries CE conformity with RoHS and REACH declarations, plus DIN EN 61439 compatibility, reinforcing safety and regulatory alignment. Designed for panel builders and automation teams, this interior module enables scalable 36 modular spacings per DIN rail and predictable fit within CombiLine ecosystems, while its plastic covers and 7035-gray finish support durable, easy-to-clean enclosures. By combining robust construction with straightforward installation, it delivers measurable efficiency gains and reduced maintenance costs over the life of the panel.
Product Information
Extended Description

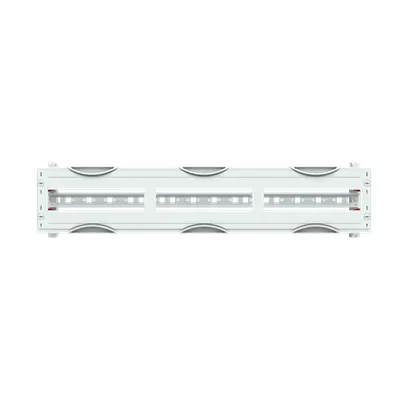

2CPX041202R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for DIN rail mounting devices, Grid unit 1 GU = 150 mm, panel width 3 = 750 mm, 36 Space units, Row distance in mm: 125 / 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, DIN rail 3 panel wide and more are with additional stabilization profile, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
1
Number of Modular Spacings per DIN Rail
36
Number of Rows
1
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
DIN Place Units
36
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
150 mm
Product Net Depth / Length
120 mm
Section Width
3
Product Net Weight
0.91 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.91 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
Feature: 36 DIN place units per DIN rail, arranged in a single row within a 750 mm width and 150 mm height. Business impact: enables high-density mounting in compact panels, reducing enclosure footprint and streamlining component layouts. Application: ideal for CombiLine interior fitting in control cabinets where space is at a premium and repeatable layouts are required. Feature: DIN rail mounting with perforations for wire holders on a 35 x 15 mm rail, plus an extra stabilization profile. Business impact: enhances wiring hygiene and secure cable routing, reducing mis-wiring and field service time. Application: suitable for projects demanding rigid mechanical stability in industrial environments. Feature: covers made of plastic in light grey (RAL 7035) with a 90-degree press-and-turn closure. Business impact: speeds up assembly, simplifies maintenance access, and provides durable protection against dust and incidental impact. Application: cabinet enclosures subjected to routine servicing and reconfigurations. Feature: RoHS information and REACH declarations, plus a WEEE category alignment. Business impact: regulatory compliance reduces risk, supports procurement approvals, and lowers end-of-life disposal costs. Application: European and global projects governed by environmental standards. Feature: Enclosure mounting frame options WR or EDF to fit common rack systems. Business impact: flexible installation reduces training time and accelerates site deployment. Application: new builds and retrofits where frame compatibility matters. Feature: Product Net Width 750 mm, height 150 mm, depth 120 mm, and a built-in weight of 0.91 kg. Business impact: enables accurate space budgeting, straightforward logistics, and reliable fit within standard cabinet footprints. Application: cabinet layout design for industrial automation installations.
Get a Quick Quote for a ABB 2CPX041202R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041202R9999?
Enquire Now
FAQs
Yes. The 2CPX041202R9999 is designed for 35 x 15 mm DIN rails with perforations for wire holders and supports WR or EDF enclosure frames, aligning with common cabinet interiors. It provides 36 DIN place units per rail in a single-row layout, ensuring straightforward integration with existing panel infrastructures.
The module supports a maximum operating voltage of 400 V and offers 36 DIN place units per DIN rail, enabling dense yet organized mounting. It fits within a 750 mm width and 150 mm height envelope, with a 120 mm depth, suitable for compact control cabinets.
Yes. The interior fitting module is specifically designed for CombiLine cabinet systems, providing compatible DIN rail mounting devices, 1 row of 36 spacings, and a robust enclosure that simplifies integration with distribution panels and rail-mounted components.
The module carries CE conformity with RoHS and REACH declarations and aligns with DIN EN 61439 standards. WEEE categorization is noted, supporting compliant end-of-life handling and environmental stewardship for European and global projects.
Expect reduced maintenance time due to easier access and reliable wire routing, along with space-efficient cabinet layouts that lower upfront enclosure costs. Regulatory compliance minimizes procurement risk, while standardized dimensions and mounting frames shorten installation time and improve long-term reliability in industrial automation environments.
