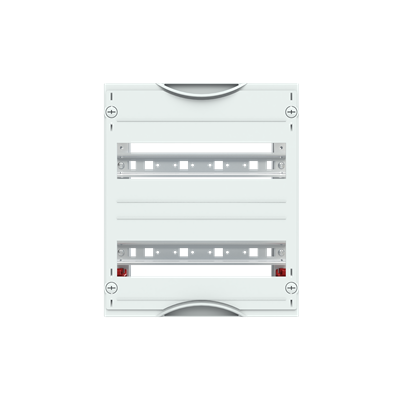

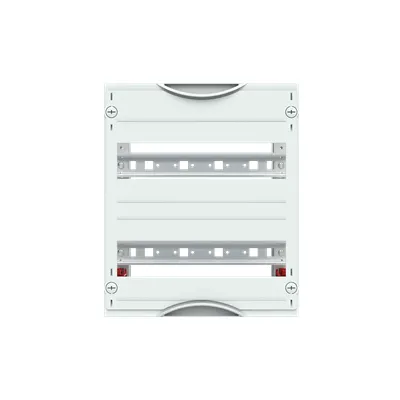

ABB 2CPX041203R9999 Interior fitting module - EN 61439-3
Part Number: 2CPX041203R9999
Quick Summary
ABB 2CPX041203R9999 interior fitting module provides compact, cabinet-grade DIN rail mounting for 24 DIN units. It helps engineers optimize space in crowded panels, reducing wiring chaos and installation time. This solution carries CE conformity and EN 61439-3 compliance, with RoHS and REACH declarations to ensure material safety. Designed for CombiLine systems, it features a two-row, two-rail layout with a 120 mm cabinet depth, assembled with 35x15 mm DIN rails and perforations for wire holders, complete with light-grey covers (RAL 7035). The result is reliable, scalable panel infrastructure that supports faster commissioning, easier maintenance, and lower lifecycle costs for industrial control cabinets.
Product Information
Extended Description
2CPX041203R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for DIN rail mounting devices, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, Row distance in mm: 125, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
2
Number of Modular Spacings per DIN Rail
12
Number of Rows
2
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
0.62 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.623 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
Feature: 24 DIN place units in a 2 GU grid (300 mm) with 250 mm panel width. Business Impact: Maximizes enclosure capacity while preserving clear access to each module, enabling orderly cabling and straightforward future expansion. Application: Ideal for large CombiLine distribution panels in mid- to high-density control cabinets. Feature: Two rows and two DIN rails (35 x 15 mm) with perforations for wire holders. Business Impact: Simplifies wiring routes, reduces risk of cross-connections, and accelerates wiring harness assembly. Application: Suitable for rapid cabinet wiring in new installations and retrofit projects. Feature: Built-in depth of 120 mm and light-grey covers (RAL 7035). Business Impact: Aligns with standard cabinet dimensions and improves visibility of connections, facilitating maintenance. Application: Compatible with common interior mounting enclosures and existing panel layouts. Feature: RoHS and REACH compliance with CE declaration. Business Impact: Lowers regulatory risk, simplifies sourcing, and speeds customer audits. Application: Ideal for compliant panel builds across industries. Feature: DIN rail compatibility and robust frame (WR or EDF). Business Impact: Ensures reliable mounting, vibration resistance, and long service life. Application: Fits typical DIN rail installations in compact spaces, enhancing overall system reliability.
Get a Quick Quote for a ABB 2CPX041203R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041203R9999?
Enquire Now
FAQs
This interior fitting module uses standard 35x15 mm DIN rails and is designed for CombiLine interiors. It supports a grid unit of 2 GU (300 mm) and a panel width of 250 mm, with a two-row layout for 24 DIN place units. It fits cabinets with a 120 mm depth and includes perforations for wire holders to simplify cable management during installation.
The module supports a rated operational voltage up to 400 V, with nominal operation at 400 V. It mounts on two DIN rails and accommodates 24 DIN place units across two rows. It uses a WR or EDF enclosure mounting frame and is compatible with DIN rail mounting devices, enabling reliable integration in standard control panels.
Yes. The interior fitting module is designed specifically for CombiLine distribution panels and integrates with standard DIN rail mounting devices. It provides 24 DIN place units across two rows, aligning with CombiLine grid concepts (2 GU, 300 mm) and ensuring consistent panel architecture, which reduces integration risk and supports scalable expansion within cabinets.
The product carries CE conformity with compliance to DIN EN 61439-3 and DIN EN 61439-2 standards. RoHS information and REACH declarations confirm restricted substances compliance, including a statement that substances >0.1 mass% are not present. WEEE category notes indicate the product is not in WEEE scope, simplifying regulatory handling.
The module reduces wiring complexity and speeds cabinet assembly, leading to shorter commissioning and maintenance times. At 0.62 kg and a built-in depth of 120 mm, it minimizes weight and space usage while remaining robust. Standardized components and DIN rail compatibility translate to lower lifecycle costs and easier, faster service in industrial environments.
