ABB 2CPX041204R9999 Interior fitting module -DIN EN 61439-3
Part Number: 2CPX041204R9999
Quick Summary
2CPX041204R9999 is an ABB interior fitting module designed for DIN rail mounting in control cabinets. It streamlines panel organization by providing a dedicated enclosure for DIN rail mounting devices, reducing wiring errors and installation time. The design complies with DIN EN 61439-3 and DIN EN 61439-2, with CE marking and RoHS/REACH alignment to support safe, regulatory-ready deployments. For panel builders and automation projects, this module offers scalable capacity and consistent, repeatable installation workflows, delivering shorter project cycles and clearer maintenance paths.
Product Information
Extended Description

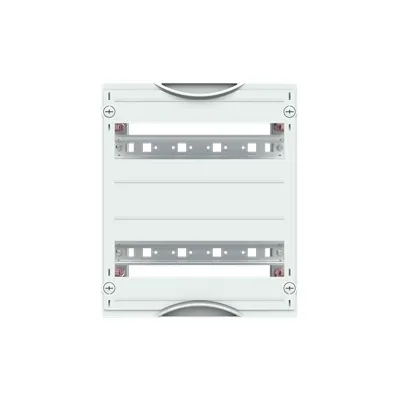

2CPX041204R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for DIN rail mounting devices, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, Row distance in mm: 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
2
Number of Modular Spacings per DIN Rail
12
Number of Rows
2
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
0.62 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.623 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
Feature: Grid unit and DIN placement capacity deliver 2 DIN rails with 24 DIN place units, enabling dense, organized panels. Business Impact: Increases wiring efficiency and reduces cabinet footprint, cutting installation time and future rework. Application: Ideal for process automation cabinets where space is at a premium and quick upgrades are common. Feature: Perforated wire holders and 90-degree press-and-turn closure support clean cable routing and secure closures. Business Impact: Improves reliability, simplifies serviceability, and lowers long-term maintenance costs. Application: Control cabinets with high cabling density and frequent reconfiguration. Feature: Plastic covers with RAL 7035 finish and compatibility with DIN rail 35 x 15 mm frames WR or EDF. Business Impact: Simplifies cosmetic integration and ensures consistent aesthetics across installations. Application: New builds and retrofits in industrial environments requiring standardized enclosures. Feature: 2 GU grid depth of 300 mm and panel width of 250 mm enables predictable fitting within cabinet depths. Business Impact: Reduces design guesswork, accelerates pre-wab and assembly phases, supports scalable layouts. Application: Modular panel systems and manufacturing lines needing repeatable layouts. Feature: RoHS, REACH declarations and DIN EN 61439 compliance minimize regulatory risk. Business Impact: Ensures regulatory compliance, reduces certification delays and warranty disputes. Application: Safe integration into regulated industrial systems. This combination of capabilities aligns with panel building best practices, supporting faster deployment, safer wiring, and scalable growth across automation projects.
Get a Quick Quote for a ABB 2CPX041204R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041204R9999?
Enquire Now
FAQs
The module is designed for DIN rail mounting with standard 35 x 15 mm rails and perforations for wire holders, simplifying wire routing and securing the unit. It accommodates two DIN rails (2 RU) and 24 DIN place units, fits WR or EDF enclosure mounting frames, and is ready for cabinet integration with minimal field adjustments, accelerating install time and reducing wiring errors.
Rated operational voltage is up to 400 V, with normal operation at 400 V. Compliance includes CE marking, RoHS (EU Directive 2011/65/EU and amendment 2015/863), REACH declarations, and DIN EN 61439-3/61439-2 standards to ensure safe, regulation-ready operation and lifecycle reliability in industrial environments.
Yes. It provides 24 DIN place units across two rows with a 300 mm grid depth (2 GU) and 250 mm panel width, enabling compact, scalable installations. The 120 mm built-in depth and perforated wire holders support dense cabling while maintaining accessibility for maintenance and future expansions.
The module carries CE declarations and RoHS/REACH compliance with DIN EN 61439-3 and 61439-2 standards, plus WEEE classification indicating product scope. These certifications minimize regulatory risk, simplify customer approvals, and streamline warranty and service lifecycle in regulated industries.
Adopting this module improves installation speed and reduces wiring errors due to standardized DIN rail mounting and cable management features. The robust enclosure, RoHS/REACH compliance, and modular 24 DIN unit layout support easier upgrades, lower service costs, and predictable maintenance planning, delivering measurable efficiency gains over traditional panel configurations.
