ABB 2CPX041209R9999 DIN rail mounting devices - 400 V CE
Part Number: 2CPX041209R9999
Quick Summary
ABB 2CPX041209R9999 DIN rail mounting devices enable compact, modular cabinet assemblies for distributed automation panels. Manufacturers face space constraints, wiring complexity, and retrofit downtime that slow time-to-value; this interior fitting module addresses those challenges with a 3-rail grid and built-in depth. It complies with CE, DIN EN 61439-3/2, and RoHS/REACH declarations, helping teams pass audits and maintain regulatory readiness. The 36 DIN place units across three rows, along with a 125 mm row spacing and perforated 35x15 mm rails, deliver scalable capacity and tidy cable management. In short, you gain faster assembly, easier maintenance, and long-term reliability for modern panel houses and machine automation projects.
Product Information
Extended Description

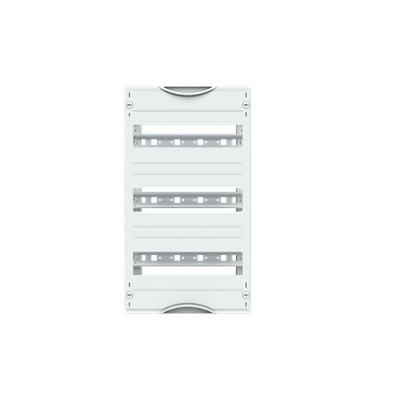

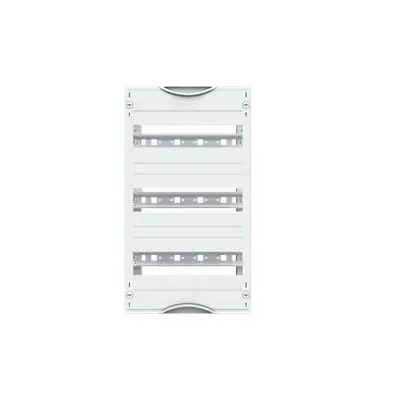

2CPX041209R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for DIN rail mounting devices, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, Row distance in mm: 125, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
3
Number of Modular Spacings per DIN Rail
12
Number of Rows
3
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
36
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
0.888 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.888 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
Feature – a grid unit designed for three DIN rails (3 GU) with a 450 mm height and 250 mm width. Impact – consolidates controls and wiring into a compact footprint, reduces cabinet depth, and streamlines cable management, delivering measurable installation time savings. Application – ideal for CombiLine interior fittings and distributed automation panels in machine control cabinets where dense module layouts are required. Feature – 36 DIN place units across three rows, with 12 modular spacings per rail, enabling predictable placement of controllers, relays, and terminal blocks. Impact – enhances traceability, reduces misalignment during upgrades, and supports straightforward reconfiguration as control logic evolves. Application – perfect for process automation cabinets in industrial settings such as packaging lines and material handling. Feature – built-in 125 mm row distance and 120 mm enclosure depth; uses 35x15 mm DIN rails with perforations for wire holders; 90-degree press-and-turn closure; covers produced in durable plastic. Impact – promotes tidy, serviceable wiring channels, reduces maintenance downtime, and permits quick access during diagnostics. Application – ideal for confined cabinet bays in robotics, packaging lines, and energy management enclosures. Feature – flexible mounting frame options WR or EDF and an interior fitting module design optimized for cabinet integration. Impact – ensures compatibility with existing enclosure ecosystems and simplifies retrofits across multiple line sites; compliance with RoHS, REACH, DIN EN 61439-2/3, and CE declarations reduces regulatory risk. Application – widely used in industrial panels, switchgear cabinets, and distribution enclosures in automotive, food, pharma, and packaging sectors. Feature – lightweight construction with light grey plastic covers; RoHS/REACH compliant; weight 0.888 kg; 3 rows and 36 DIN unit capacity. Impact – reduces shipping costs, simplifies field service, and lowers total cost of ownership while preserving mechanical durability. Application – suitable for new builds and retrofits in industrial cabinets where ease of maintenance and regulatory compliance matter.
Get a Quick Quote for a ABB 2CPX041209R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041209R9999?
Enquire Now
FAQs
Yes. The ABB 2CPX041209R9999 is designed to mount on standard DIN rails measuring 35x15 mm and includes perforations for wire holders to support neat cabling. The enclosure uses a grid unit built for 3 GU (450 mm high, 250 mm wide) and supports 3 rows with a 120 mm built-in depth. Installation is straightforward with a plug‑in DIN rail approach and WR/EDF frame options.
Key specs include a rated operational voltage of 400 V and a maximum operating voltage of 400 V. The unit supports three DIN rails with 36 DIN place units across three rows, enabling dense, organized installations. This configuration is well suited for 400 V distribution panels in automation and control cabinets, ensuring safe, compliant operation across standard industrial environments.
This interior fitting module is ideal for panel builders and system integrators designing CombiLine distribution panels, machine control cabinets, and process automation enclosures. It supports scalable architectures with 3 rails and 36 DIN units, making it suitable for manufacturing lines, packaging equipment, robotics cells, and energy management cabinets where space efficiency and future expansion matter.
The module complies with DIN EN 61439-3 and DIN EN 61439-2, DIN 43880, and CE declarations. RoHS information aligns with EU Directive 2011/65/EU and Amendment 2015/863, with a RoHS date of 20240903. REACH declarations are provided, and the product is categorized under WEEE as not in the scope. ETIM 8/9 and eClass classifications also apply for standardized data.
The module delivers easy maintenance through accessible 120 mm depth and plug‑in DIN rail mounting, reducing downtime during upgrades. Its 36 DIN units and 12 modular spacings per rail simplify reconfiguration, labeling, and expansion. Lightweight at 0.888 kg with durable plastic covers, RoHS/REACH compliance, and CE declarations contribute to lower lifecycle costs and regulatory risk for modern industrial cabinets.
