ABB 2CPX041211R9999 DIN rail mounting device - EN61439
Part Number: 2CPX041211R9999
Quick Summary
DIN rail mounting device ABB 2CPX041211R9999 enables compact cabinet distribution with a 3-rail grid for modular control systems. Too often, engineers struggle with space constraints, wire routing, and incomplete documentation when installing multiple modules in a panel. This solution carries DIN EN 61439-3 and DIN EN 61439-2 conformity, CE marking, RoHS, and REACH declarations, plus a comprehensive CombiLine interior fitting module design. By standardizing footprint and improving build efficiency, it reduces installation time and lifecycle cost, while ensuring regulatory compliance for panel builders and system integrators. Secondary benefits include seamless integration with CombiLine components and improved maintainability in cabinet installations.
Product Information
Extended Description

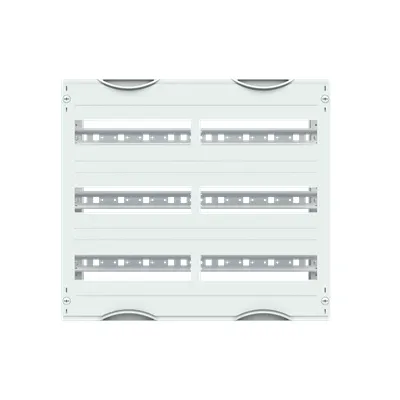

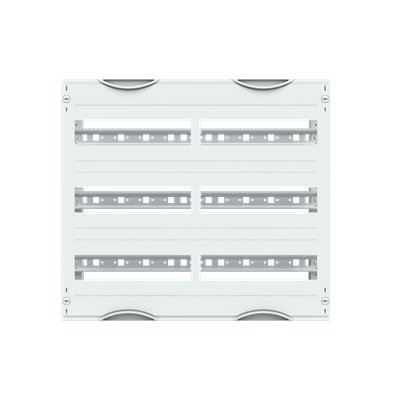

2CPX041211R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for DIN rail mounting devices, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, Row distance in mm: 125, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
3
Number of Modular Spacings per DIN Rail
24
Number of Rows
3
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
72
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
450 mm
Product Net Depth / Length
120 mm
Section Width
2
Product Net Weight
1.78 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.782 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
Feature: 3 DIN rails for mounting and 72 DIN place units; Business Impact: enables high-density modular layouts, reducing panel footprint and material count; Application: cabinet distribution panels where space is at a premium. Feature: Grid unit 3 GU (450 mm) and panel width 500 mm; Business Impact: predictable footprint simplifies procurement and layout planning; Application: system installations requiring standardized enclosure dimensions. Feature: Perforated wire holders and 90-degree press-and-turn closure; Business Impact: faster, cleaner wiring with secure terminations; Application: interior wiring within CombiLine enclosures. Feature: Plastic covers and light grey finish; Business Impact: durable, corrosion-resistant appearance with easy maintenance; Application: visible panels in control cabinets. Feature: RoHS, REACH, CE compliance and DIN EN 61439 standards; Business Impact: regulatory risk reduction and accelerated approvals; Application: regulated industries such as industrial automation and energy distribution. Feature: 72 DIN place units and 24 modular spacings per DIN rail; Business Impact: scalable channeling for modular devices, enabling future expansion; Application: long-term control system upgrades. Industry context: compatibility with 35 x 15 mm DIN rails, WEEE considerations, and ETIM/eClass classifications support robust procurement and maintenance workflows.
Get a Quick Quote for a ABB 2CPX041211R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041211R9999?
Enquire Now
FAQs
The module uses a standard 35 x 15 mm DIN rail system and is designed to fit cabinet interiors built for CombiLine. With 3 DIN rails, 72 DIN place units, and a 450 mm grid, it harmonizes with common modular devices, simplifying integration with existing wiring schematics and ensuring secure mounting without custom fabrication.
Key specs include 3 DIN rails, 72 DIN place units, grid unit 3 GU (450 mm), panel width 500 mm, built-in depth 120 mm, and a 125 mm row spacing. Rated up to 400 V, with a 3‑row enclosure and perforated wire holders for improved routing. It supports DIN EN 61439-2/3 compliance and CE marking.
Yes. The module carries CE conformity and RoHS information in accordance with EU Directive 2011/65/EU and its amendments, plus REACH declarations. These certifications are documented in the product data and supported by the EU Declarations of Conformity and related compliance notes, reducing regulatory risk for panel builders.
It is ideal for cabinet-based distribution panels and CombiLine interior fittings. Its 3‑rail grid, 72 DIN places, and 500x450x120 mm footprint support modular device hosting, organized cable routing, and scalable expansion in control cabinets used in industrial automation and power distribution environments.
Benefits include faster installation due to standardized footprint and easy access via perforated wire holders, reduced wiring errors, and lower lifecycle costs from compliant, maintainable enclosures. The module’s compatibility with existing DIN rails and its robust compliance portfolio help shorten project timelines and improve system reliability.
