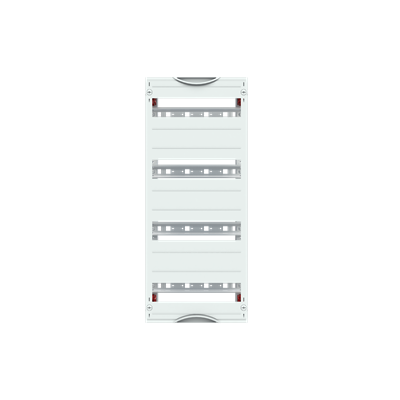

ABB 2CPX041216R9999 DIN Rail Mounting Module - CE 400V
Part Number: 2CPX041216R9999
Quick Summary
The DIN Rail Mounting Module 2CPX041216R9999 by ABB streamlines cabinet space planning and modular control in industrial panels. Engineers often confront crowded layouts, tangled wiring, and limited scalability; this solution provides a clean, scalable foundation for distributing devices on DIN rails. It carries CE conformity and DIN EN 61439-3/2 compliance, with RoHS and REACH declarations to support regulatory adherence. Built for panel builders and integrators, it enables faster assembly, easier maintenance, and reliable expansion within CombiLine interior fitting systems, while maintaining a consistent, lightweight footprint in light grey (RAL 7035). This translates to lower downtime, predictable installation times, and improved system integrity across multi-drawer cabinets and compact enclosures.
Product Information
Extended Description
2CPX041216R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for DIN rail mounting devices, Grid unit 4 GU = 600 mm, panel width 1 = 250 mm, 48 Space units, Row distance in mm: 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
4
Number of Modular Spacings per DIN Rail
12
Number of Rows
4
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
DIN Place Units
48
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
600 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
1.18 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.183 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
Feature: Four DIN rails for mounting with twelve modular spacings per rail. Business Impact: Maximizes component density while preserving serviceability and future expansion potential. Application: Ideal for 48 DIN place units across a 600 mm high, 250 mm wide, 120 mm deep interior fitting module in control cabinets. The result is greater rack efficiency and faster reconfiguration during panel updates. Feature: Interior fitting module designed for CombiLine with perforated DIN rail support. Business Impact: Simplifies cable routing and reduces installation time, cutting labor costs by enabling cleaner, more accessible wiring channels. Application: Suitable for panel systems requiring neat wire management and reliable access for maintenance in high-density cabinets. Feature: 90-degree press and turn closure with robust plastic covers. Business Impact: Improves enclosure integrity and serviceability; quick access during routine maintenance without tools. Application: Common in cabinets where frequent access to terminal blocks and modular devices is required, minimizing downtime. Feature: Lightweight, color-coded design in light grey (RAL 7035) with DIN rails 35 x 15 mm and perforations for wire holders. Business Impact: Reduces weight and material costs while ensuring compatibility with standard components; enhances visibility and alignment during installation. Application: Suitable for standard industry enclosures and modular panel systems in automation and electrical distribution. Feature: Compliance and sustainability package including RoHS, REACH, WEEE, and CE declarations. Business Impact: Lowers regulatory risk, supports corporate ESG goals, and simplifies procurement with certified traceability. Application: Ideal for regulated environments and panel builders seeking reliable compliance documentation alongside component performance.
Get a Quick Quote for a ABB 2CPX041216R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041216R9999?
Enquire Now
FAQs
The module is designed for DIN rail mounting using standard 35 x 15 mm rails with perforations for wire holders, supporting four rails and 12 modular spacings per rail within a 600 mm high, 250 mm wide, 120 mm deep cabinet. It aligns with common interior fitting systems such as CombiLine, ensuring straightforward installation and reliable integration with existing panels.
This module adheres to CE conformity and standards including DIN EN 61439-3, DIN EN 61439-2, and DIN 43880. It also carries RoHS and REACH declarations, with a RoHS date of 2024-09-03 and a REACH date of 2024-09-02, plus WEEE classification indicating it is not in scope for WEEE.
The product nets 250 mm in width, 600 mm in height, and 120 mm in depth with 48 DIN place units. The enclosure supports four rows of DIN rail mounting, delivering a compact yet dense arrangement suitable for crowded control panels and distribution cabinets.
Yes. The interior fitting module is explicitly designed for CombiLine panel systems, featuring a plastered cover design, perforated DIN rails for wire holders, and a 90-degree press-and-turn closure, making it ideal for cabinet-based distribution and modular assembly in panel builders’ workflows.
The four-rail, 12-spacings-per-rail design enables scalable expansion and easier maintenance. The module’s robust closure and plastic cover improve service access, reducing downtime. Regulatory compliance (CE, RoHS, REACH) and traceable declarations support long-term asset management and procurement efficiency for regulated environments.
