ABB 2CPX041217R9999 Interior Fitting Module - DIN EN 61439-3
Part Number: 2CPX041217R9999
Quick Summary
ABB 2CPX041217R9999 interior fitting module provides robust DIN rail mounting for large cabinet enclosures in industrial control panels. The design addresses common space, cable management, and accessibility challenges faced during panel assembly and expansion. It conforms to key standards such as DIN EN 61439-3, DIN EN 61439-2, and CE declarations, with RoHS and REACH information for compliant operation in regulated environments. This solution integrates with ABB CombiLine platforms to support scalable panel design, faster installation, and easier maintenance. By combining a structured 4‑row grid with 96 DIN place units, it delivers predictable layouts, improved traceability, and reduced wiring errors across complex control cabinets.
Product Information
Extended Description

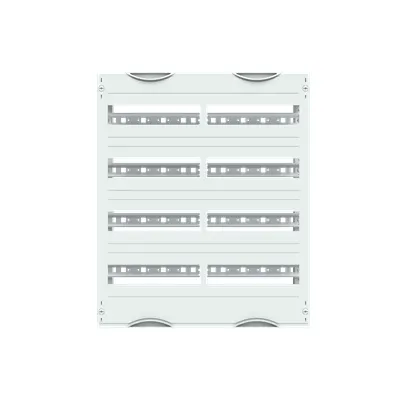

2CPX041217R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for DIN rail mounting devices, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, Row distance in mm: 125, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
4
Number of Modular Spacings per DIN Rail
24
Number of Rows
4
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
DIN Place Units
96
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
600 mm
Product Net Depth / Length
120 mm
Section Width
2
Product Net Weight
2.458 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.458 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
Feature → Business Impact → Application: The interior fitting module offers a grid unit of 4 GU (600 mm) and a panel width of 500 mm, providing ample space for dense wiring and modular expansion. This translates to improved organization, faster diagnostics, and reduced risk of cross-connection errors in high-density control cabinets used in process automation and machine building. Feature → Reliability → Application: Built-in perforated wire holders and a 90-degree press-and-turn closure support secure cabling while simplifying installation and service access during routine maintenance across ABB CombiLine setups. Feature → Compliance → Application: RoHS and REACH declarations with DIN EN 61439-3/2 and DIN 43880 standards ensure regulatory compliance for panel builders delivering certified electrical enclosures. Feature → Installation Efficiency → Application: The unit ships with DIN rail mounting compatibility (35 x 15 mm) and a 120 mm built-in depth, enabling quick drop-in mounting in standard 4‑rail frames and minimizing field adjustments in factory or site installations. Feature → Cost-of-ownership → Application: Durable construction and standardized components reduce rework, cut maintenance time, and support long-term reliability in industrial automation projects. This combination supports engineers seeking measurable efficiency gains, traceability, and scalable panel design without sacrificing safety or performance.
