ABB 2CPX041223R9999 Interior Fitting Module - 400 V
Part Number: 2CPX041223R9999
Quick Summary
Interior Fitting Module from ABB is designed to organize and mount DIN rail devices inside cabinet environments for efficient panel assembly. Engineers often grapple with wasted space, tangled cabling, and inconsistent mounting when expanding panels, leading to longer installation times and higher costs. It complies with DIN EN 61439-2/3, CE conformity, and RoHS/REACH declarations, providing regulatory confidence for safe operation. Used with CombiLine grid concepts and a 5 GU (750 mm) height, it supports scalable layouts with 120 DIN place units and 24 modular spacings per rail, helping procurement standardize parts while reducing overall costs. The solution integrates smoothly into factory automation workflows, delivering predictable lead times and improved maintenance cycles.
Product Information
Extended Description

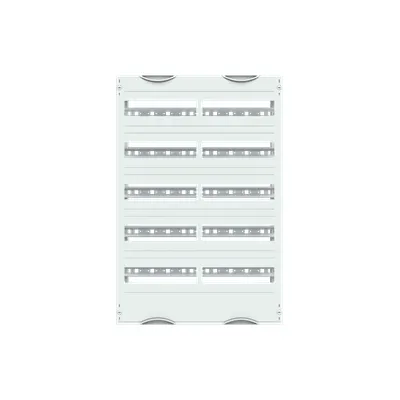

2CPX041223R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for DIN rail mounting devices, Grid unit 5 GU = 750 mm, panel width 2 = 500 mm, 120 Space units, Row distance in mm: 125, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
5
Number of Modular Spacings per DIN Rail
24
Number of Rows
5
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
1
DIN Place Units
120
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
750 mm
Product Net Depth / Length
120 mm
Section Width
2
Product Net Weight
3.015 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.015 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
Feature → Business Impact → Application: Five DIN rails for mounting enables large, multi-row configurations, increasing component density without compromising access or serviceability, ideal for centralized distribution panels in industrial cabinets. Application: panel builders deploying WR or EDF enclosure frames benefit from compact, scalable layouts and faster assembly. Feature → Business Impact → Application: 120 DIN place units with 125 mm row spacing improves cable management and modular expansion capability, reducing wiring errors and rework in control cabinets. Application: high-density automation panels in process plants. Feature → Business Impact → Application: Perforated 35 x 15 mm DIN rails with wire holders streamline routing and strain relief, cutting installation time and improving fault isolation. Application: centralized automation racks. Feature → Business Impact → Application: 90-degree press-and-turn closures and cut-out covers simplify field servicing and future access, minimizing downtime during maintenance. Application: facilities with frequent reconfiguration. Feature → Business Impact → Application: RoHS and REACH compliance plus DIN EN 61439-2/3 conformance ensure regulatory alignment and safer procurement. Application: regulated manufacturing environments seeking certified components. The device also ships with a light grey RAL 7035 finish for consistent aesthetic and labeling across panels, supporting visual organization and maintenance clarity.
Get a Quick Quote for a ABB 2CPX041223R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041223R9999?
Enquire Now
FAQs
Yes. The module is designed for DIN rail mounting devices and supports standard 35x15 mm DIN rails with perforations for wire holders. It fits WR or EDF enclosure frames and aligns with CombiLine panel concepts, enabling straightforward integration into existing cabinets without custom tooling or adapters.
The module supports a maximum operating voltage of 400 V and a rated operational voltage of 400 V. It accommodates 5 DIN rails, 24 modular spacings per rail, and 120 DIN place units within a 500 mm width and 750 mm height footprint, with a built-in depth of 120 mm. These specs enable dense, compliant installations in industrial control cabinets.
Industries with heavy control cabinet requirements, such as manufacturing automation, process industries, and energy distribution, benefit most. The 5 GU grid, 120 DIN places, and 125 mm row spacing support scalable, organized layouts for distribution panels, PLC assemblies, and multi-silo cabinets, while maintaining compliance with DIN EN 61439 and related standards.
The module complies with DIN EN 61439-2/3 and DIN 43880, with CE conformity and RoHS/REACH declarations. It carries EU RoHS dates and REACH information, and is categorized under WEEE as product not in scope, ensuring regulatory alignment for European panel builders.
By enabling dense, modular layouts with standardized interfaces, this module reduces installation time and part variety, lowering procurement complexity. Its organized cable routing, easy access closures, and 120 mm depth simplify maintenance and future reconfigurations, delivering measurable cost savings and improved uptime in automated production environments.
