ABB 2CPX041258R9999 Interior module - DIN EN 61439-3
Part Number: 2CPX041258R9999
Quick Summary
2CPX041258R9999 interior fitting module protects CombiLine cabinet touch guards and supports 24 DIN places in panel assemblies. This design reduces installation time and alignment errors in tight cabinet depths. It carries CE conformity and DIN EN 61439-3/2 standards with RoHS and REACH declarations, giving regulators and procurement teams confidence in compliant power distribution. By combining compact dimensions with robust protection, it accelerates panel builds while lowering lifecycle costs for electrical cabinets and control rooms.
Product Information
Extended Description

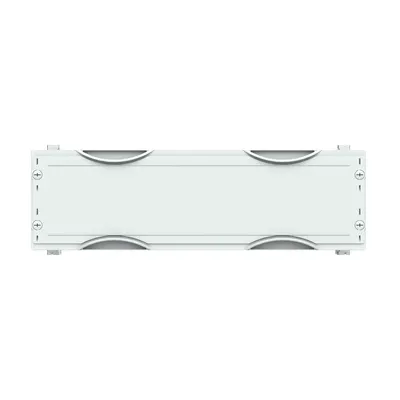

2CPX041258R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for touch guard, Grid unit 1 GU = 150 mm, panel width 2 = 500 mm, 24 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
DIN Place Units
24
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
150 mm
Product Net Depth / Length
120 mm
Section Width
2
Product Net Weight
0.39 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.392 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Rated Operational Voltage is 400 V max. Business Impact: Enables safe integration into standard 400 V three-phase distribution networks, reducing design complexity and component mismatch in industrial cabinets. Application: Ideal for ABB CombiLine interior fittings in panel assemblies across manufacturing plants. Feature: Enclosure Mounting Frame compatibility WR or EDF. Business Impact: Provides flexible mounting options, simplifying retrofits and new builds. Application: Works with ABB WR or EDF frames in existing cabinet lines, streamlining install time. Feature: 24 DIN Places with 500 mm width, 150 mm height, and 120 mm depth. Business Impact: High-density integration supports more protective features without increasing cabinet depth, cutting materials and labor costs. Application: Suitable for 24-position distribution panels and grid-based layouts in control rooms. Feature: Touch guard with 90-degree closure and closed cover design. Business Impact: Enhances operator safety and reduces dust ingress, improving reliability in harsh environments. Application: Fits interior fitting modules in CombiLine, ensuring consistent access control. Feature: Material compliance and regulatory certifications including RoHS, REACH, CE, and WEEE readiness; ETIM/eClass alignment. Business Impact: Compliance reduces risk, streamlines audits, and supports global deployments. Application: Suitable for regulated industrial environments and multi-site installations. Feature: Compact dimensions and light weight—0.39 kg with built-in depth of 120 mm. Business Impact: Eases handling and reduces total installed weight, enabling simpler shipping and installation in tight spaces. Application: Ideal for space-constrained panel installations in modern control rooms.
Get a Quick Quote for a ABB 2CPX041258R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041258R9999?
Enquire Now
FAQs
The module supports WR or EDF enclosure mounting frames and provides 24 DIN places within a 500 mm wide by 150 mm high footprint with a 120 mm built-in depth. Use the 90-degree closure to ensure a tight, dust-resistant seal and verify cabinet depth compatibility prior to retrofits or new builds.
It complies with DIN EN 61439-3/2 for distribution panel systems and carries RoHS and REACH declarations, including a RoHS date of 20240903 and REACH information confirming no substances above 0.1 mass percentage. CE conformity is documented via the EU declaration of conformity.
Yes. The 2CPX041258R9999 is designed as an interior fitting module for CombiLine cabinets, providing 24 DIN units, a 500 mm width, 150 mm height, and a 120 mm depth, with a closed-cover touch guard suitable for tight installations.
Key dimensions include Product Net Width 500 mm, Product Net Height 150 mm, Product Net Depth 120 mm, and Built-In Depth 120 mm. The unit weighs 0.39 kg, supports 24 DIN Places, and uses a 2 GU grid, enabling dense yet accessible protection within compact cabinets.
The module delivers CE, DIN EN 61439-3/2 compliance, RoHS/REACH declarations, and a robust dust-protective cover, reducing regulatory risk. Its compact design and flexible mounting lower installation time and lifecycle costs, while enabling scalable deployments across multiple sites and regulated environments.
