ABB 2CPX041260R9999 Interior fitting module - DIN EN 61439-3
Part Number: 2CPX041260R9999
Quick Summary
The 2CPX041260R9999 interior fitting module provides touch guard protection for cabinet enclosures. Engineers often contend with crowded panels and limited build space, making safe access and maintenance challenging. This ABB unit carries CE conformity, RoHS compliance, and REACH declarations, aligned with DIN EN 61439-2/3 requirements for panel systems. Designed for panel builders and system integrators, it supports scalable CombiLine installations and streamlined assembly, boosting efficiency while reducing risk. By leveraging 24 DIN places in a 300 mm high module, it enables predictable budgeting and safer, standards-driven installations.
Product Information
Extended Description

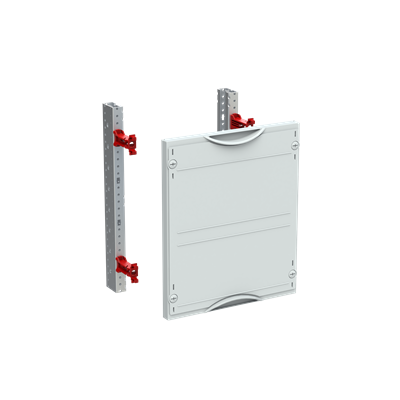

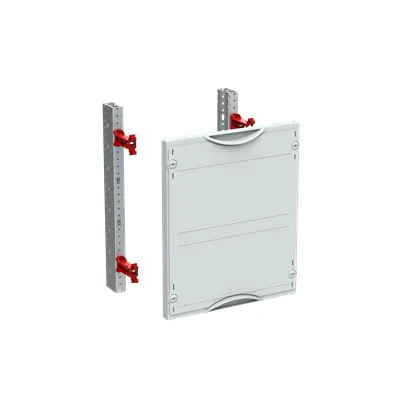

2CPX041260R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for touch guard, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
0.38 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.382 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: Touch guard module with 24 DIN places, 250 mm width, 300 mm height, and 120 mm depth enables compact, standardized panel layouts, reducing integration time and stock diversity. This translates to faster assembly, easier field servicing, and lower total cost of ownership in automated system cabinets. Application: Ideal for Grid unit 2 GU installations within CombiLine cabinets where space is at a premium and repeatable configurations are essential. Feature → Business Impact → Application: Enclosure mounting frames WR or EDF provide flexible mounting options across a range of cabinet styles, minimizing the need for adapters and expediting installation in diverse plant environments. Application: Control panels requiring adaptable mounting compatibility. Feature → Business Impact → Application: Lightweight plastic cover with a light grey finish improves visual inspection and ease of cleaning, reducing downtime and maintenance effort in harsh factory floors. Application: Everyday use in production lines where safety and quick access matter. Feature → Business Impact → Application: Full RoHS and REACH compliance plus CE declaration reduces regulatory risk and supplier audits, enabling faster market access. Application: Industries with strict conformity requirements. Feature → Business Impact → Application: 24 DIN places and a built-in depth of 120 mm support scalable, repeatable configurations for future expansions, lowering redesign costs. Application: Panel builders planning phased upgrades or modular expansions.
Get a Quick Quote for a ABB 2CPX041260R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041260R9999?
Enquire Now
FAQs
Installation begins with selecting the appropriate enclosure mounting frame (WR or EDF) for your cabinet. Mount the interior fitting module in the designated space, align with the 24 DIN places, and secure the 250 x 300 x 120 mm unit. Connect to the system’s 400 V supply, verify RoHS/REACH compliance, and test touch guard operation before commissioning.
Key specs include a rated operational voltage of up to 400 V, operational voltage of 400 V, 24 DIN place units, and the 250 mm width, 300 mm height, and 120 mm depth. Ensure the enclosure frame supports WR or EDF mounting and confirm RoHS/REACH declarations before energizing the cabinet.
Yes. The module is designed for WR or EDF enclosure mounting frames, enabling flexible integration across a range of interior fittings. This compatibility supports streamlined retrofits and scalable panel designs, reducing the need for additional adapters and expediting installation in busy production environments.
It carries CE conformity, RoHS compliance under EU Directive 2011/65/EU with amendments, and REACH declarations. Additionally, it aligns with DIN EN 61439-2/3 for distribution panels, with ETIM 8/9 classifications and eClass 27400615 references to aid cataloging and procurement workflows.
The 0.38 kg module reduces handling effort and simplifies transport, while its compact 24-DIN design standardizes assemblies, lowering spare parts and rework. Improved safety from touch guard protection translates to reduced incident risk, faster servicing, and shorter downtime, delivering measurable gains in maintenance efficiency and project timelines.
