ABB 2CPX041261R9999 fitting module - DIN EN 61439-3
Part Number: 2CPX041261R9999
Quick Summary

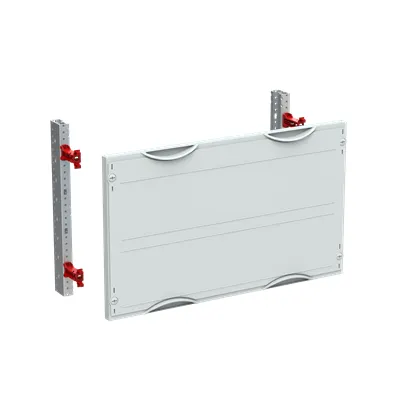

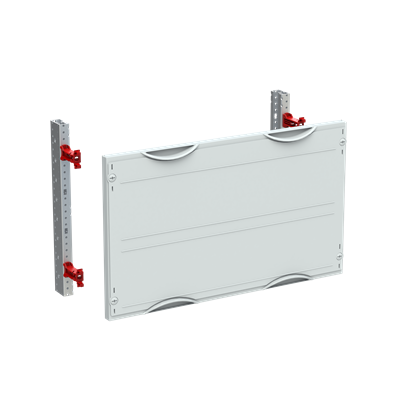

ABB 2CPX041261R9999 interior fitting module is designed to house touch guard components inside electrical cabinets. In tight panel spaces, user access and safety demand reliable protection and efficient space planning. It complies with DIN EN 61439-3 and 61439-2, carries CE conformity, and uses RoHS-compliant materials. For panel builders, its 48 DIN spaces and 120 mm built-in depth streamline installation, reduce commissioning time, and support compliant, scalable panel assemblies.
Product Information
Extended Description
2CPX041261R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for touch guard, Grid unit 2 GU = 300 mm, panel width 2 = 500 mm, 48 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
48
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
300 mm
Product Net Depth / Length
120 mm
Section Width
2
Product Net Weight
0.71 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.712 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 48 DIN-place interior fitting module designed for CombiLine cabinets. Business Impact: enables high-density panel layouts, reducing cabinet footprint and wiring complexity, which lowers total installed cost. Application: ideal for compact control panels in industrial automation requiring dense distribution. Feature: 90-degree press-and-turn closure with a plastic cover in light grey. Business Impact: provides quick, secure access during maintenance while maintaining enclosure integrity. Application: frequent-touch guard scenarios where fast service is needed. Feature: mounting frame compatibility WR or EDF. Business Impact: flexible installation across different enclosure designs, reducing retrofit times. Application: seamless integration with existing ABB CombiLine systems. Feature: RoHS and REACH compliance with documented declarations. Business Impact: regulatory risk Mitigation and easier procurement for European projects. Application: governance-heavy manufacturing environments. Feature: built-in depth of 120 mm, 500 mm width, 300 mm height with 0.71 kg weight. Business Impact: easy handling, reduced labor during installation, scalable panel planning. Application: panel shops and on-site installs requiring manageable weight and predictable dimensions. Feature: 2 GU (Grid Unit) footprint and 48 DIN spaces. Business Impact: enables scalable control distribution while preserving service accessibility. Application: grid-based power and control distribution in CombiLine panels.
Get a Quick Quote for a ABB 2CPX041261R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041261R9999?
Enquire Now
FAQs
ABB 2CPX041261R9999 is designed for CombiLine interior installations and supports 48 DIN places within a 500 mm by 300 mm footprint, with a built-in depth of 120 mm. It accepts WR or EDF enclosure mounting frames, enabling straightforward retrofits and compatibility with existing cabinet designs. Pair with a 2 GU grid (300 mm) to maintain consistent spacing and wiring access.
The module supports an operational voltage of 400 V, with a maximum of 400 V. It includes a touch guard and a 90-degree press-and-turn closure, delivering safe, quick access for maintenance while preserving enclosure integrity in dense panel layouts.
Yes. It is purpose-built for touch guard applications in CombiLine cabinets, offering 48 DIN spaces and a compact 120 mm built-in depth. Its design supports high-density, safe access in industrial control panels, delivering efficient installation and serviceability for panel builders.
It complies with DIN EN 61439-3 and DIN EN 61439-2, carries CE conformity, and uses RoHS-compliant materials. REACH declarations confirm no substances above 0.1% by mass, supporting regulatory compliance across European panel projects.
With a light 0.71 kg weight and a 90-degree closure, installation and service are faster, reducing labor time. The durable touch guard design minimizes downtime, while density and standardization support scalable panel assemblies, contributing to lower lifecycle costs and faster time-to-value for automation projects.
