ABB 2CPX041263R9999 Fitting Module - DIN EN 61439-3
Part Number: 2CPX041263R9999
Quick Summary
ABB 2CPX041263R9999 is an interior fitting module that supports touch guard in cabinet-based control enclosures. In crowded panels, dedicated space and safe access often hinder maintenance; this module streamlines layout for faster servicing. It carries CE conformity with RoHS and REACH declarations, and meets DIN EN 61439-3/2 for safe, compliant operation. For panel builders and system integrators, the design reduces installation time while improving serviceability and regulatory confidence. The module supports 36 DIN place units, enabling compact yet scalable layouts for medium to large cabinets. Its built-in depth of 120 mm aligns with standard cabinet depths, reducing the need for custom enclosures and rework.
Product Information
Extended Description

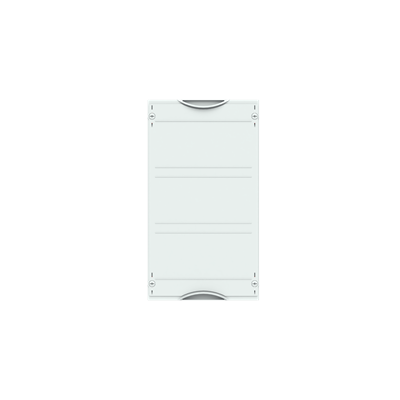

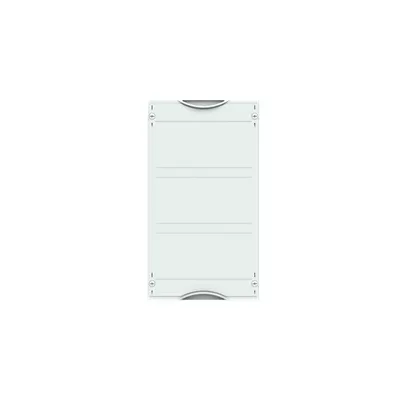

2CPX041263R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for touch guard, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
36
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
0.51 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.512 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 36 DIN place units provide significant enclosure capacity without increasing footprint. Business Impact: Enables scalable control layouts and reduces cabinet expansion costs. Application: Ideal for medium to large CombiLine cabinets in process automation. Feature: 90-degree press and turn closure offers quick, reliable access. Business Impact: Shortens maintenance cycles and minimizes door wear. Application: Frequent servicing scenarios where rapid fault isolation is needed. Feature: Light grey body with grey cover matches industrial environments and supports clear labeling. Business Impact: Improves safety and reduces misoperation risk. Application: Panel rooms with strict visual standards and high-access areas. Feature: RoHS and REACH compliance with CE conformity. Business Impact: Simplifies procurement and regulatory filings while reducing supply-chain risk. Application: Projects requiring EU compliance reporting and sustainability documentation. Feature: Enclosure mounting frame options WR or EDF. Business Impact: Flexible installation across diverse cabinet designs, accelerating deployment. Application: Retrofit and new installs within the CombiLine ecosystem.
Get a Quick Quote for a ABB 2CPX041263R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041263R9999?
Enquire Now
FAQs
The module is designed for interior fitting within CombiLine enclosures and supports WR or EDF enclosure mounting frames. It provides 36 DIN place units to maximize space efficiency and fits a cabinet depth of 120 mm. For a straightforward retrofit, align the module with existing mounting rails and secure the closed cover for protected operation.
Rated Operational Voltage is 400 V with a maximum of 400 V; the module complies with DIN EN 61439-3 and DIN EN 61439-2 for electrical safety. It carries CE conformity and RoHS/REACH declarations, including the EU DoC and CMRT considerations, ensuring regulatory compliance for industrial control panels.
Yes, the 2CPX041263R9999 is specifically designed as a touch guard interior fitting module. It provides a purpose-built 36 DIN space layout, a 90-degree closure for easy access, and a closed grey cover, improving fault isolation, service speed, and safety in cabinet-based controls, while aligning with CombiLine installation standards.
Product Net Width is 250 mm, Product Net Height is 450 mm, and Product Net Depth is 120 mm, with a built-in depth of 120 mm. The net weight is 0.51 kg. These specs help determine enclosure footprint, cable routing, and accessibility, enabling efficient planning for medium to large cabinets without overprovisioning space.
RoHS information confirms compliance with EU directive 2011/65/EU and amendment 2015/863; REACH declaration is provided (no substances >0.1 mass %). The EU Declaration of Conformity supports CE marking, and the CMRT indicates responsible sourcing. WEEE categorization states the product is not in scope, simplifying end-of-life considerations.
