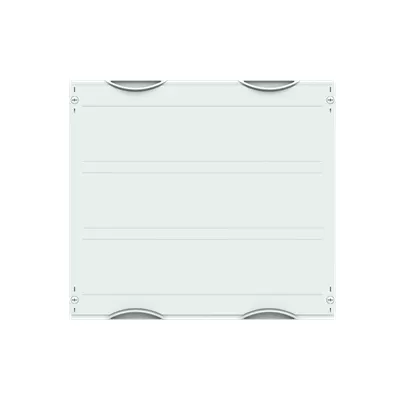

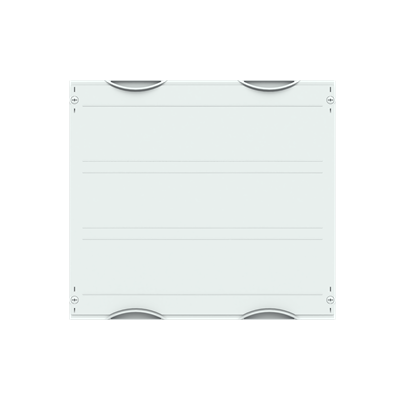

ABB 2CPX041264R9999 Touch Guard - DIN EN 61439-3
Part Number: 2CPX041264R9999
Quick Summary
ABB 2CPX041264R9999 Touch Guard protects interior cabinet fittings in CombiLine enclosures for safe, accessible control panels. Engineered to minimize dust ingress and prevent accidental contact, it simplifies installation while keeping cabinet aesthetics intact. It meets DIN EN 61439-3 and DIN EN 61439-2, and carries CE conformity with RoHS and REACH declarations for compliant global deployment. Designed for 72 DIN place units with a 450 x 500 mm footprint, this interior fitting module offers reliable protection in industrial environments. Built for 120 mm cabinet depth, it enables predictable space planning and reduced service costs. Ideal for modular cabinet systems, it supports quick retrofits and scalable protection, improving uptime and safety across panels.
Product Information
Extended Description
2CPX041264R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for touch guard, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
72
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
450 mm
Product Net Depth / Length
120 mm
Section Width
2
Product Net Weight
1.04 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.042 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Interior fitting module with a touch guard for CombiLine cabinets provides robust operator protection by preventing direct contact with live components and limiting dust intrusion, helping maintain system reliability. This translates into fewer maintenance interrupts and longer cabinet life in demanding environments. It is sized for a 450 mm by 500 mm opening, supports 72 DIN place units, and fits a built-in depth of 120 mm, making it a practical choice for mid-size control panels. Flexible enclosure mounting frame compatibility (WR or EDF) enables quick integration into existing cabinets without custom adapters. This reduces installation time and upfront costs while improving retrofit capabilities. The design supports a 90-degree closure once mounted, ensuring safe, tamper-resistant access to the panel. Exterior protection and aesthetics are addressed with a plastic cover in light grey (cover color Grey) and a closed cover design (RAL 7035). This combination not only shields sensitive components but also maintains a professional cabinet appearance and simplifies cleaning in cleanroom-adjacent environments. The closed cover design helps manage cable management and keeps internal heat sources contained. Regulatory compliance is a key business driver: RoHS information confirms no restricted substances above thresholds (EU 2011/65/EU and 2015/863), REACH declaration covers regulatory clarity, and a CE declaration of conformity marks the product for European markets. With these certifications, you can confidently standardize this module across multi-site deployments and supplier audits. Dimensions and mass reinforce compatibility planning: Product net width 500 mm, height 450 mm, and depth 120 mm, with a net weight of 1.04 kg and a package weight of 1.042 kg. The module fits within 120 mm cabinet depth, aligns with DIN place units, and is compatible with 2-section panels. The combination of ETIM 8/9, eClass 27400615, and DIN EN standards ensures reliable data across procurement systems.
Get a Quick Quote for a ABB 2CPX041264R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041264R9999?
Enquire Now
FAQs
The module is designed for enclosure mounting frames WR or EDF and fits interior fitting panels within ABB CombiLine cabinets. It accommodates 72 DIN place units with a 450 mm by 500 mm opening and a built-in depth of 120 mm, enabling straightforward integration into existing cabinet architectures. The design also supports rapid retrofits and minimizes disruption during upgrades.
The unit provides a closed touch guard that prevents direct contact with live parts and reduces dust ingress, lowering fault rates and cleaning time. The 90-degree closure design enables easy access for inspections and servicing, while the lightweight 1.04 kg profile aids handling during installation and maintenance, reducing labor costs and downtime.
Yes. The guard carries CE conformity and RoHS/REACH declarations, with DIN EN 61439-3 and DIN EN 61439-2 as the governing enclosure standards. It is also aligned with ETIM 8/9 and eClass 27400615 data models, and has a WEEE status indicating appropriate lifecycle handling. These certifications support compliant multi-site deployments and audits.
Product net width is 500 mm, height 450 mm, and depth 120 mm, with a net weight of 1.04 kg and a package weight of 1.042 kg. It fits within 120 mm cabinet depth and is designed for 72 DIN units. These specs enable precise space planning, BOM accuracy, and efficient cabinet design.
Yes. Its WR/EDF compatibility and standard DIN dimensions support retrofits in existing CombiLine installations. Benefits include enhanced operator safety, faster commissioning, fewer maintenance visits, and predictable spare-part compatibility, all contributing to lower lifecycle costs and improved uptime across industrial control cabinets.
