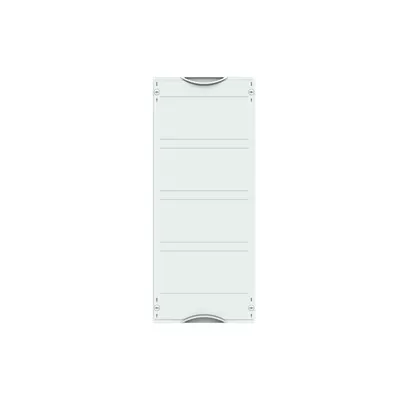

ABB 2CPX041266R9999 Touch Guard - DIN EN 61439-3
Part Number: 2CPX041266R9999
Quick Summary
ABB 2CPX041266R9999 touch guard module secures interior cabinet access while protecting sensitive controls. Engineers and technicians often struggle with safely filtering access points without sacrificing cabinet space or serviceability. This solution is CE-marked and aligns with RoHS and REACH while meeting DIN EN 61439-3/2 requirements. With a 600 mm tall by 250 mm wide footprint and 48 DIN spaces, it supports scalable panel design and faster assembly. That combination delivers predictable installation costs, reduced downtime, and improved compliance across panel builds. The module is designed for CombiLine interiors, mounting in cabinet frames WR or EDF, and uses a closed cover for safety.
Product Information
Extended Description
2CPX041266R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for touch guard, Grid unit 4 GU = 600 mm, panel width 1 = 250 mm, 48 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
DIN Place Units
48
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
600 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
0.58 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.583 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 48 DIN place units provide expansive wiring and component organization within a single enclosure. Benefit: streamlines cable management, reduces misrouting, and enables scalable panel design for future expansions. Application: panel builders and system integrators delivering compact, high-density control cabinets. The arrangement supports faster commissioning and easier testing, improving overall project timelines. Feature: Enclosure Mounting Frame supports WR or EDF variants. Benefit: flexible installation across multiple ABB CombiLine configurations, minimizing custom adapters and inventory. Application: retrofit or new builds in industrial plants where enclosure standards vary. Feature: Rated Operational Voltage up to 400 V and 400 V operational voltage. Benefit: compatibility with standard industrial control circuits, reducing the need for alternate components or rewiring. Application: machine builders and process control panels seeking reliable voltage handling. Feature: 600x250x120 mm exterior footprint with 120 mm built-in depth. Benefit: compact but spacious interior for touch guard devices while preserving cabinet depth and aisle space. Application: control cabinet design in limited-space environments. Feature: RoHS and REACH compliance, EU Declarations of Conformity, and WEEE classification. Benefit: regulatory peace of mind, simplified supplier audits, and safer end-of-life handling. Application: electronics andElectrical equipment manufacturers targeting regulated sectors and global markets. Feature: Closed cover with 90-degree press-and-turn closure. Benefit: enhanced safety, easy service access, and reduced risk of accidental openings during operation. Application: high-traffic control cabinets in manufacturing environments.
Get a Quick Quote for a ABB 2CPX041266R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041266R9999?
Enquire Now
FAQs
The 2CPX041266R9999 is designed as an interior fitting module that mounts inside CombiLine cabinets using WR or EDF enclosure frames. It provides 48 DIN spaces and a closed 90-degree closure, which simplifies mounting, reduces exposure during service, and accelerates the build process for panel manufacturers and integrators.
Key specs include a maximum operational voltage of 400 V, a working voltage of 400 V, 48 DIN place units, a footprint of 600 mm (H) x 250 mm (W) x 120 mm (D), and a built-in depth of 120 mm. The module is designed for interior use within CombiLine enclosures and supports WR/EDF mounting frames.
Yes. The 2CPX041266R9999 complies with DIN EN 61439-3 (and DIN EN 61439-2) through its design and testing regime, and it carries CE conformity along with RoHS compliance and REACH declarations. This makes it suitable for regulated panel applications across industrial environments.
Plan for a 600x250x120 mm footprint and a 120 mm built-in depth, which fit typical 4 U interior spaces. Ensure enclosure frames WR or EDF are compatible, provide 400 V supply routing, and use the 90-degree closure for safe access. Consider RoHS/REACH documentation during commissioning for audits.
Benefits include faster assembly due to standardized 48 DIN spaces, improved safety with a closed touch guard, and reduced downtime from easier maintenance access. Regulatory compliance (DIN EN 61439-3, RoHS, REACH) lowers audit risk and can shorten project timelines, contributing to lower total cost of ownership over the cabinet lifecycle.
