ABB 2CPX041267R9999 Interior fitting module - EN61439-3
Part Number: 2CPX041267R9999
Quick Summary
ABB 2CPX041267R9999 interior fitting module is designed to organize and shield distribution components inside CombiLine cabinets. Engineers often face space constraints and complex wiring; this module provides 96 DIN spaces in a compact 600x500 mm footprint to streamline layouts. It aligns with DIN EN 61439-3, CE conformity, RoHS compliance, and REACH declarations, ensuring regulatory safety and lifecycle reliability. By standardizing enclosure design, it reduces assembly time and supports scalable, cost-efficient panel builds for manufacturing and process industries. Additionally, compatibility with WR or EDF enclosure frames and a 90-degree closure enhances maintenance access and long-term serviceability.
Product Information
Extended Description

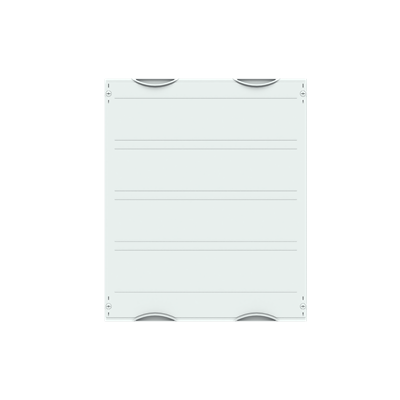

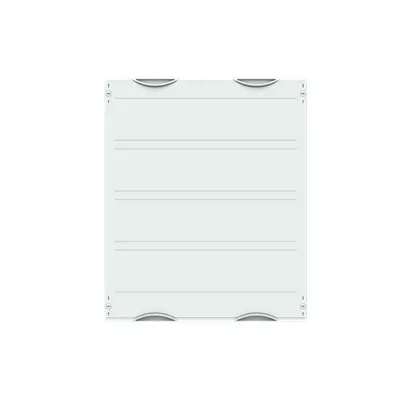

2CPX041267R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for touch guard, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
DIN Place Units
96
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
600 mm
Product Net Depth / Length
120 mm
Section Width
2
Product Net Weight
1.43 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.432 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: The interior fitting module delivers 96 DIN places within a 600 mm height by 500 mm width footprint, maximizing cabinet density and reducing overall panel footprint in CombiLine systems. This enables tighter wiring layouts and faster assembly for panel builders, improving project throughput and on-site efficiency. Feature → Business Impact → Application: Built-in depth of 120 mm and a 600 mm cabinet height ensure predictable integration with standard compartment layouts, simplifying retrofits and new installations in process environments. Feature → Business Impact → Application: Touch guard functionality with a closed cover and 90-degree closure minimizes exposure to live components while delivering easy access during maintenance, ideal for control cabinets with frequent front-panel interaction. Feature → Business Impact → Application: Light grey housing and grey cover, made of plastic and RoHS-compliant materials, support durable, compliant enclosures with aesthetic consistency across facilities. Feature → Business Impact → Application: Compliance with DIN EN 61439-2/3, EU CE Declarations, REACH, and RoHS enables project acceptance, procurement standardization, and regulatory peace of mind across multi-site deployments. Feature → Business Impact → Application: Compatibility with WR or EDF enclosure mounting frames simplifies installation and reduces integration risk, while ETIM 8/9, eClass classifications, and WEEE status provide clear data for procurement systems and asset tracking.
Get a Quick Quote for a ABB 2CPX041267R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041267R9999?
Enquire Now
FAQs
Begin by confirming the enclosure frame (WR or EDF) and ensure the cabinet offers space for 96 DIN units. Align the 600 mm height, 500 mm width, and 120 mm depth with the internal supports, secure the module, and verify the 90-degree closure operates freely. Electrics should be wired per standard practice and documentation, with RoHS/REACH considerations in mind.
Key specs include a rated operational voltage up to 400 V, a broad 400 V operating range, 96 DIN places for device mounting, and overall net dimensions of 500 mm width by 600 mm height and 120 mm depth. The unit is constructed from plastic with a light grey housing and grey cover, designed for CombiLine installations.
Yes. The module is designed as an interior fitting module with a touch guard function, featuring a closed cover and a 90-degree closure to protect personnel while enabling quick access for maintenance. It’s intended for cabinets within CombiLine distributions, improving safety and serviceability in panel assemblies.
The module complies with DIN EN 61439-3 (and 61439-2) and carries EU CE conformity. RoHS compliance covers restricted substances per Directive 2011/65/EU and Amendment 2015/863, with REACH declarations in place. It is also associated with ETIM 8/9 and eClass classifications, and is listed as WEEE not in scope for disposal consideration.
The 96-DIN unit interior fitting module standardizes panel builds, reducing assembly time and wiring complexity. With durable RoHS-compliant plastics and a maintenance-friendly 90-degree closure, it lowers lifetime operating costs and simplifies component replacement. Its standardized dimensions also support scalable, multi-site installations and faster ROI on panel projects.
