ABB 2CPX041268R9999 Interior fitting module - DIN EN 61439-3
Part Number: 2CPX041268R9999
Quick Summary
ABB 2CPX041268R9999 interior fitting module provides touch guard protection for CombiLine cabinets used in control panels. Cramped spaces, retrofit complexity, and mounting incompatibilities challenge many projects, but a standardized interior module simplifies upgrade paths. It carries DIN EN 61439-3 safety certification, RoHS compliance, and REACH declarations to meet European regulatory requirements. Designed for 144 DIN place units within a 750 mm by 600 mm footprint, it delivers efficient, compliant installation for panel builders and system integrators. Additionally, the solution aligns with ETIM and eClass classifications to simplify cataloging and procurement. By standardizing interior fittings, teams reduce part variety, shorten lead times, and streamline commissioning across multi-site deployments.
Product Information
Extended Description

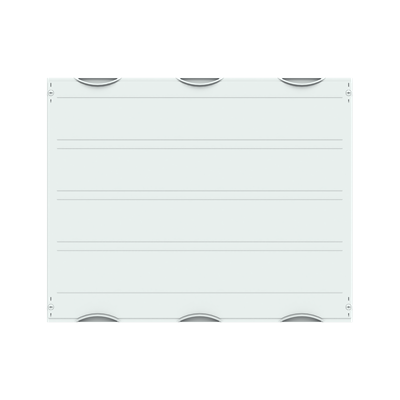

2CPX041268R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for touch guard, Grid unit 4 GU = 600 mm, panel width 3 = 750 mm, 144 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
DIN Place Units
144
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
600 mm
Product Net Depth / Length
120 mm
Section Width
3
Product Net Weight
2.02 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.022 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
The interior fitting module features a touch guard with a closed cover and a 90-degree press-and-turn closure, providing safe, controlled access inside cabinets. This design minimizes accidental contact and protects sensitive components, helping you meet safety standards without slowing maintenance. It is ideal for CombiLine cabinet interiors in industrial control panels. With 144 DIN place units and a 750 mm wide by 600 mm high footprint, the module enables high-density installation, reducing panel area and improving wiring management. The Enclosure Mounting Frame option WR or EDF offers broad compatibility with ABB systems and other enclosure frames, simplifying installation and reducing spare-part variety. RoHS information and REACH declarations accompany the product to lower regulatory risk and support compliance across sites. The closed cover with a 90-degree closure also facilitates rapid maintenance access while keeping live parts protected, improving uptime. Material and color features — plastic covers, light grey body, and grey cover — contribute to consistent aesthetics across the panel line. These characteristics support streamlined procurement and cataloging in ETIM and eClass frameworks, while maintaining robust performance under industrial conditions.
Get a Quick Quote for a ABB 2CPX041268R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041268R9999?
Enquire Now
FAQs
Install the module inside the cabinet using the WR or EDF enclosure mounting frame option. Align the 750 mm width and 600 mm height with the cabinet interior grid, then secure the touch guard cover using the 90-degree press-and-turn mechanism for a reliable seal and safe operation during maintenance.
The module is rated for a maximum operational voltage of 400 V, with a nominal 400 V operating voltage. It accommodates 144 DIN place units and occupies a footprint of 750 mm by 600 mm with a built-in depth of 120 mm, suitable for high-density control panels.
Yes. With 144 DIN place units in a 750 mm by 600 mm footprint, it supports dense arrangements common in modern control cabinets, enabling more functionalities per panel while maintaining accessibility and safety.
The module complies with DIN EN 61439-3 safety standards, is RoHS compliant, and has REACH declarations. It also aligns with CE marking and specifies WEEE classification as 'Product Not in WEEE Scope', aiding regulatory conformity across EU sites.
The solution reduces panel footprint while increasing terminal density, which lowers installation time and wiring complexity. Standardized components simplify procurement, shorten commissioning, and reduce lifecycle costs through improved safety, regulatory compliance, and easier multi-site deployment.
