ABB 2CPX041270R9999 Interior fitting module - EN 61439-3
Part Number: 2CPX041270R9999
Quick Summary
ABB 2CPX041270R9999 interior fitting module delivers a robust touch guard solution for CombiLine cabinets in industrial automation. It addresses the common challenge of delivering safe, accessible panel protection within compact cabinet footprints, while preserving easy maintenance access. The unit aligns with key standards, including CE conformity, RoHS compliance under EU Directive 2011/65/EU, and DIN EN 61439-3/61439-2, supporting safe and regulated installations. For panel builders and OEMs, the 500 mm panel width, 750 mm height footprint, and 120 DIN-place capacity enable scalable protection without sacrificing space or interoperability across control cabinets and distribution panels.
Product Information
Extended Description

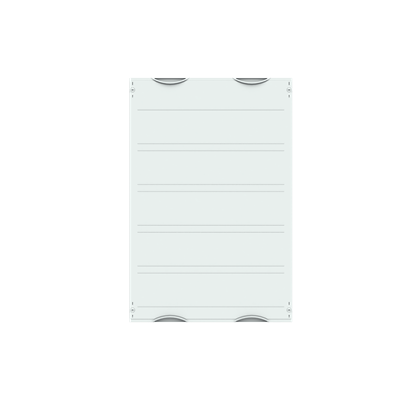

2CPX041270R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for touch guard, Grid unit 5 GU = 750 mm, panel width 2 = 500 mm, 120 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
1
DIN Place Units
120
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
750 mm
Product Net Depth / Length
120 mm
Section Width
2
Product Net Weight
1.75 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.752 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Touch guard with 90-degree press and turn closure. Business Impact: Improves operator safety by reducing exposure to live components and preventing accidental door openings during operation. Application: Ideal for interior fitting modules in CombiLine cabinets where quick yet secure access is required. Feature: 120 DIN place units with 500 mm width and 750 mm height footprint (grid unit 5 GU = 750 mm; 2 = 500 mm; 120 space units). Business Impact: Standardizes cabinet layouts and simplifies device mounting, enabling predictable scalability and faster assembly. Application: Panel assemblies in medium to large control cabinets where space planning is critical. Feature: Enclosure Mounting Frame WR or EDF and closed cover design. Business Impact: Ensures reliable mounting compatibility across common enclosure frames and delivers robust enclosure integrity with a clean, enclosed profile. Application: Retrofit and new builds in industrial automation environments. Feature: Material and finish (plastic cover, light grey with grey cover). Business Impact: Weight-efficient, corrosion-resistant, and visually consistent with modern control panels, reducing maintenance intensity. Application: OEM panel production and retrofit projects. Feature: Regulatory and environmental compliance (RoHS, REACH, CE, WEEE). Business Impact: Minimizes compliance risk and lifecycle costs, simplifying end-to-end procurement and disposal. Application: Global manufacturing installations with strict compliance requirements.
Get a Quick Quote for a ABB 2CPX041270R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041270R9999?
Enquire Now
FAQs
Yes. The interior fitting module specifies enclosure mounting frames WR or EDF, ensuring straightforward integration with common industrial enclosures and preserving alignment with existing cabinet designs.
The module supports a rated operational voltage up to 400 V. It incorporates a touch guard with a 90-degree press and turn closure to minimize accidental contact and enhance operator safety during cabinet access.
Yes. It is designed as an interior fitting module for CombiLine systems, providing 120 DIN places within a 500 mm by 750 mm footprint, suitable for panel builders needing modular protection in distribution panels.
The module carries CE conformity, RoHS compliance under EU Directive 2011/65/EU and amendment 2015/863, along with DIN EN 61439-3/61439-2 standards and related REACH information, ensuring regulatory alignment for global installations.
With a 1.75 kg net weight, 120 DIN spaces, and compatibility with WR/EDF frames plus a closed cover, the unit supports quick installation, safer maintenance, and consistent compliance across multiple cabinets and panel projects.
