2CPX041313R9999
Part Number: 2CPX041313R9999
Product Information
Extended Description

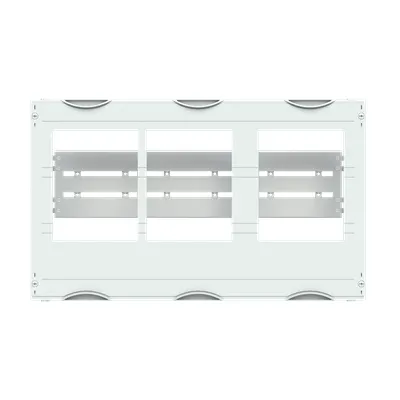

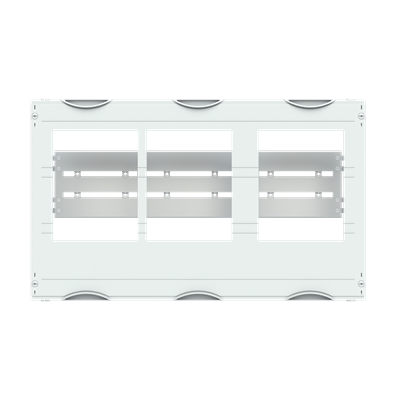

2CPX041313R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for NH1-fuse switch disconnector, Grid unit 3 GU = 450 mm, panel width 3 = 750 mm, 108 Space units, unequipped for the installation of 3 NH-fuse disconnector NH1, for busbar system 3-pole, rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 225 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
440 A
Number of Poles
3P
Number of Fuse Switch Disconnectors
3
Number of Knife Blade Fuse Holders
0
Number of Mountable Devices
3
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR
Device
NH1
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Mounting Type
Mounting plate
Accessories Available
Yes
DIN Place Units
108
Meter Boards
0
Module Function
NH1-fuse switch disconnector
Color
Light grey
Fuse Size
NH1
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
450 mm
Product Net Depth / Length
225 mm
Section Width
3
Product Net Weight
4.209 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.209 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002286 - Distributor assembly Low Voltage HRC fuse systems
ETIM 9
EC002286 - Distributor assembly Low Voltage HRC fuse systems
eClass
V11.0 : 27400619
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
