2CPX041322R9999
Part Number: 2CPX041322R9999
Product Information
Extended Description

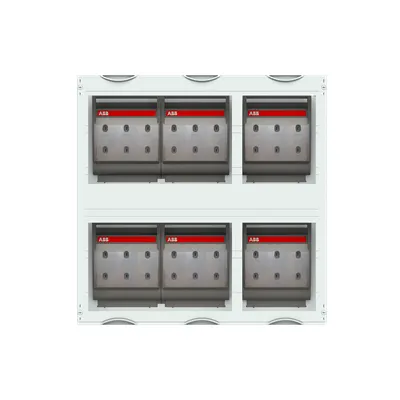

2CPX041322R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for NH2-fuse switch disconnector, Grid unit 5 GU = 750 mm, panel width 3 = 750 mm, 180 Space units, equipped with 6 NH-fuse disconnector NH2, Equipment manufacturer: ABB, XLP, with busbar system 3-pole, rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 225 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
630 A
Number of Poles
3P
Number of Fuse Switch Disconnectors
6
Number of Knife Blade Fuse Holders
0
Number of Mountable Devices
6
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR
Device
NH2
Enclosure Type
Interior fitting module
Enclosure Type of Height
1
Mounting Type
Mounting plate
DIN Place Units
180
Meter Boards
0
Module Function
NH2-fuse switch disconnector
Color
Light grey
Fuse Size
NH2
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
750 mm
Product Net Height
750 mm
Product Net Depth / Length
225 mm
Section Width
3
Product Net Weight
32.318 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
33.611 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002286 - Distributor assembly Low Voltage HRC fuse systems
ETIM 9
EC002286 - Distributor assembly Low Voltage HRC fuse systems
eClass
V11.0 : 27400619
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43673-1
