2CPX041339R9999
Part Number: 2CPX041339R9999
Product Information
Extended Description

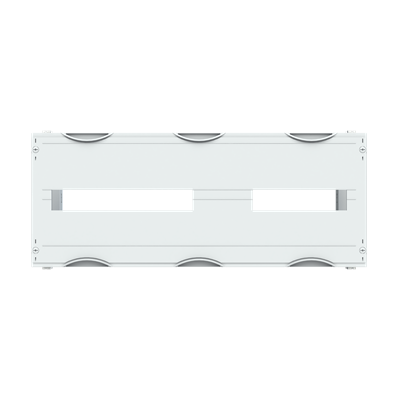

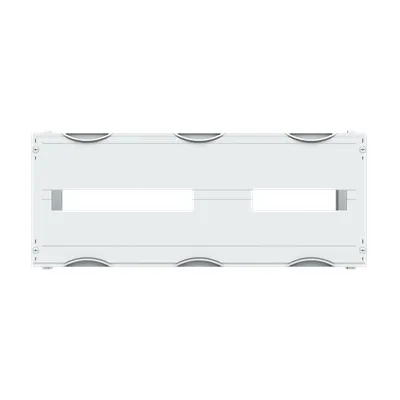

2CPX041339R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 40 mm for S700, Grid unit 2 GU = 300 mm, panel width 3 = 750 mm, 72 Space units, , usuable width of 315 mm, unequipped for the installation of selective main circuit breaker S700, for busbar system 4-pole, Busbar alignment: horizontal, with busbar holders ZB5, Busbar center distance: 40 mm, for maximum 5 Cu busbars, (busbars must be ordered separately), rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
250 A
Rated Operational Current (Ie)
250 A
Number of Poles
4P
Number of Switches
0
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
S700
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
Accessories Available
Yes
DIN Place Units
72
Meter Boards
0
Module Function
Busbar system 40 mm for S700
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
77942696-057f-4d5e-b72a-9c20d0019f22 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
3
Product Net Weight
2.58 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.58 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
