ABB 2CPX041370R9999 Switch Disconnector OT - DIN EN 61439-3
Part Number: 2CPX041370R9999
Quick Summary
The ABB 2CPX041370R9999 Switch Disconnector OT delivers compact isolation for panel cabinets in three-pole busbar systems. Engineers often face space constraints and complex wiring in crowded switchgear, making installation slower and error-prone; this interior fitting module consolidates devices for cleaner, faster setups. It aligns with CE conformity, RoHS, and REACH declarations under DIN EN 61439-2/3, offering regulatory assurance and operator safety. For panel builders and maintenance teams, the solution provides reliable performance and scalable enclosure integration. Designed for ABB CombiLine panels, it supports 24 DIN places, a 160 A rating, and straightforward field servicing, delivering measurable cost savings and easier future expansions.
Product Information
Extended Description

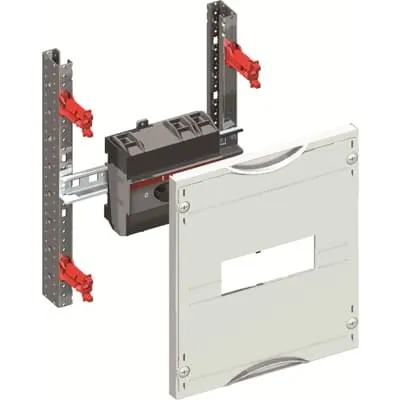

2CPX041370R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Switch disconnector OT, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, equipped with 1 NH-switch disconnector OT160G, Equipment manufacturer: ABB, OT, for busbar system 3-pole, rated current maximum 160 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
160 A
Rated Operational Current (Ie)
160 A
Number of Poles
3P
Number of Switches
1
Number of Mountable Devices
1
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR or EDF
Device
OT160G
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Meter Boards
0
Module Function
Switch disconnector OT
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
1.526 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.526 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Interior fitting module for mounting the OT switch disconnector OT160G inside a cabinet. Business Impact: Reduces overall enclosure footprint while simplifying wiring and serviceability. Application: Ideal for CombiLine installations in distribution panels and grid units. Feature: 3P design with 160 A rating and 400 V operational envelope. Business Impact: Enables safe, reliable three-phase isolation for moderate-load distributions with compliance to DIN EN 61439-2/3. Application: Suitable for industrial control panels and process equipment where robust isolation is required. Feature: 24 DIN place units and precise 250 mm width x 300 mm height x 200 mm depth envelope. Business Impact: Predictable space planning reduces cabinet redesign costs and accelerates panel builds. Application: Panel builders needing high-density layouts in compact enclosures. Feature: Enclosure mounting flexibility with WR or EDF frames. Business Impact: Installation versatility supports retrofits and future expansions without full cabinet replacement. Application: Industrial rooms with variable mounting requirements. Feature: RoHS and REACH compliance with formal declarations. Business Impact: Lowers regulatory risk and streamlines procurement for regulated industries. Application: Electronics-heavy environments requiring environmental compliance. Feature: CombiLine interior fitting module integration with OT160G device. Business Impact: Seamless interoperability reduces commissioning time and minimizes wiring errors. Application: ABB panel systems and busbar-based distribution.
Get a Quick Quote for a ABB 2CPX041370R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041370R9999?
Enquire Now
FAQs
The unit is designed as an interior fitting module compatible with CombiLine panels and can be mounted using WR or EDF enclosure frames. This provides flexible installation options, simplifies retrofits, and ensures a secure, vibration-resistant fit in standard 24‑DIN unit cabinets.
It features a 3-pole design with a rated current of 160 A and rated/operational voltage of 400 V, supporting maximum 400 V operation. The device is intended for 24 DIN spaces and integrates into busbar systems, enabling reliable three-phase isolation in distribution panels.
Yes. It carries CE conformity, RoHS compliance with EU Directive 2011/65/EU and amendment 2015/863, and a REACH declaration indicating no substances above 0.1 mass percentage. It also aligns with DIN EN 61439-2/3, supporting compliance across regulated markets.
The module accommodates the OT160G switch disconnector within a 3-pole, 24‑DIN space framework, enabling compact, scalable isolation in CombiLine panels. It is well-suited for installation in cabinets requiring robust, maintainable isolation with straightforward future upgrades for evolving load profiles.
The enclosure provides a width of 250 mm, height of 300 mm, and depth of 200 mm, with a net weight of 1.526 kg. These dimensions facilitate accurate space planning in panel housings, ensuring compatibility with 24‑DIN-lot layouts and predictable clearances.
