ABB 2CPX041371R9999 Switch disconnector OT - DIN EN 61439-3
Part Number: 2CPX041371R9999
Quick Summary
ABB 2CPX041371R9999 switch disconnector OT assembly is designed for safe 3-pole isolation inside switchgear cabinets. It reduces wiring complexity and footprint in compact panels by integrating a 24-DIN interior fitting module. Key standards include DIN EN 61439-3/61439-2, with RoHS/REACH compliance and a CE declaration to support regulatory alignment. Designed for CombiLine interiors and busbar systems, it delivers reliable isolation with modular installation for panel builders and OEMs. For serviceability, the enclosure uses a light grey 7035 finish and a 90-degree closure for quick access. Industry practitioners value predictable installation, traceable compliance data, and efficient component sourcing across the CombiLine family.
Product Information
Extended Description

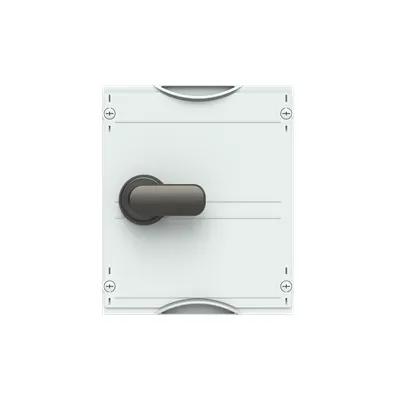

2CPX041371R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Switch disconnector OT, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, equipped with 1 NH-switch disconnector OT200E, Equipment manufacturer: ABB, OT, for busbar system 3-pole, rated current maximum 200 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
200 A
Rated Operational Current (Ie)
200 A
Number of Poles
3P
Number of Switches
1
Number of Mountable Devices
1
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR or EDF
Device
OT200E
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Meter Boards
0
Module Function
Switch disconnector OT
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
2.707 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.707 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Integrated 3-pole OT200E switch disconnector within an interior fitting module. Business Impact: Delivers reliable primary isolation up to 200 A, reducing separate component count and fault points. Application: Ideal for 3P busbar systems in cabinet installations using CombiLine panels. Feature: 24 DIN place units with built-in depth of 200 mm and overall footprint 250 mm x 300 mm. Business Impact: Enables predictable panel zoning and scalable expansion, easing future upgrades. Application: Fits WR or EDF mounting frames for seamless integration in standard switchgear. Feature: Light gray enclosure with plastic covers and 90-degree press-and-turn closure (RAL 7035). Business Impact: Improves field accessibility, serviceability, and aesthetic consistency in commercial environments. Application: Front-access panels in OEM builds and panel builders requiring quick, tool-free maintenance. Feature: Compliance and sustainability data including RoHS, REACH declarations, WEEE category 5, and CE conformity. Business Impact: Reduces regulatory risk and supports corporate sustainability programs. Application: European market deployments with traceable conformity documentation. Feature: Compatibility with WR or EDF enclosure mounting frames and integration within CombiLine interior installations for busbar systems. Business Impact: Streamlines procurement and reduces integration time by leveraging standard frames. Application: Suitable for modular distribution panels in industrial facilities.
Get a Quick Quote for a ABB 2CPX041371R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041371R9999?
Enquire Now
FAQs
The interior fitting module is designed to mount with WR or EDF enclosure frames, enabling seamless integration into standard switchgear chassis. This compatibility simplifies procurement, reduces custom fabrication, and accelerates on-site assembly for 24‑DIN layouts.
The OT200E provides 3-pole isolation rated for up to 200 A with a nominal operating voltage of 400 V. It is engineered for reliable operation in busbar systems and fits within the 24 DIN unit footprint of the CombiLine interior module.
Yes. The product adheres to DIN EN 61439-3 (and related DIN EN 61439-2) and carries RoHS and REACH declarations, plus CE conformity, ensuring regulatory alignment and sustainability across European installations.
This 3P 200A OT switch disconnector within a CombiLine interior fitting module is ideal for distribution panels and busbar systems in manufacturing facilities, data centers, and process industries where reliable isolation, modularity, and standardized DIN sizing support scalable expansion.
The module occupies 250 mm width, 300 mm height, and 200 mm built-in depth with a net weight of 2.707 kg. Packaged as 1 piece per unit, these dimensions aid in layout planning and forklift-safe handling.
