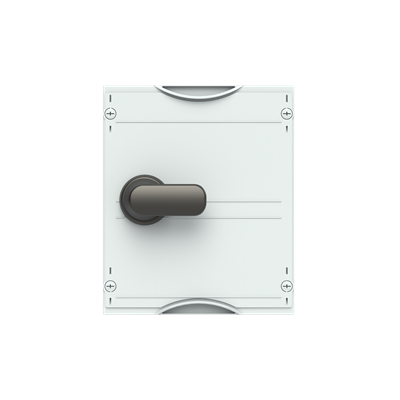

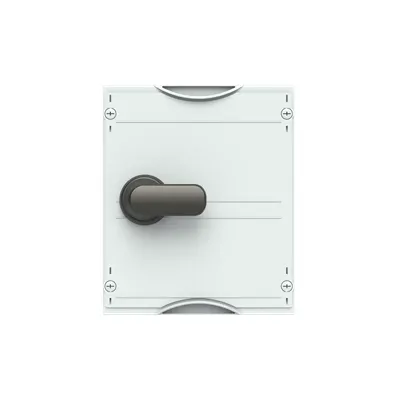

ABB 2CPX041372R9999 Switch Disconnector OT - DIN EN 61439-3
Part Number: 2CPX041372R9999
Quick Summary
ABB 2CPX041372R9999 Switch Disconnector OT interior module is designed for panel-level switching in CombiLine cabinet systems. This 3-pole, 250 A device fits a 24 DIN-space enclosure and integrates a single OT250E switch for compact, reliable disconnection. Engineers often face space constraints and alignment challenges when wiring busbar systems in distribution panels; this module provides a 250 mm width and 300 mm height to maximize cabinet real estate. It features a light-grey plastic cover and a 90-degree closure for fast, secure operation. Compliance includes DIN EN 61439-3 and DIN EN 61439-2 standards, plus CE, RoHS, and REACH declarations to simplify regulatory paperwork. The result is improved install efficiency, predictable performance, and lower lifecycle costs through standardized ABB components.
Product Information
Extended Description
2CPX041372R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Switch disconnector OT, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, equipped with 1 NH-switch disconnector OT250E, Equipment manufacturer: ABB, OT, for busbar system 3-pole, rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
250 A
Rated Operational Current (Ie)
250 A
Number of Poles
3P
Number of Switches
1
Number of Mountable Devices
1
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR or EDF
Device
OT250E
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Meter Boards
0
Module Function
Switch disconnector OT
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
2.707 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.707 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Integrated 3-pole OT250E switch reduces assembly steps and minimizes wiring complexity, cutting installation time and fault potential. In CombiLine cabinet builds, this compact 24-DIN-space module supports reliable disconnection for grid units up to 250 A, improving safety margins during commissioning. The 250 A rating and 400 V capability ensure scalability for future load growth, enabling panel builders to reuse the same enclosure for evolving loads and reducing spare parts inventory. The 90-degree press-and-turn closure, along with a durable light-grey plastic cover, simplifies maintenance and reduces service time, while the enclosure mounting frames WR or EDF provide flexible installation across different cabinet depths. RoHS and REACH compliance, plus CE declarations, minimize regulatory risk and support sustainable design goals for European markets. DIN place units = 24 and a 3P configuration enable standardized layouts and faster project execution.
Get a Quick Quote for a ABB 2CPX041372R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041372R9999?
Enquire Now
FAQs
Yes. This interior fitting module is designed specifically for CombiLine cabinets and fits 24 DIN place units, accommodating a 3P OT250E switch. Its WR/EDF mounting frame options and 250 x 300 mm envelope simplify retrofits and new builds alike, ensuring straightforward integration with existing grid units and busbar systems.
The unit provides three poles (3P), a rated current of 250 A (In/Ie), and a maximum operational voltage of 400 V. It integrates a single OT250E switch and is suitable for 3-pole distribution within a 24-DIN-space enclosure, aligning with DIN EN 61439-3/2 standards.
Ideal for panel builders and industrial automation projects involving distribution panels, modular switchgear, and busbar systems. It supports grid units up to 250 A in cabinet environments, making it suitable for manufacturing plants, process automation, and energy distribution applications requiring compact, compliant interior fittings.
The module complies with DIN EN 61439-3 and DIN EN 61439-2, and carries CE declarations with RoHS and REACH compliance. It also aligns with WEEE considerations for small equipment, aiding regulatory compliance across European markets.
By consolidating switching into a single, standardized interior fitting module, maintenance is simplified and spare parts inventory is reduced. The robust enclosure, 90-degree closure, and standardized 24-DIN-space footprint support faster commissioning, easier upgrades, and lower lifecycle costs during plant expansion or cabinet retrofits.
